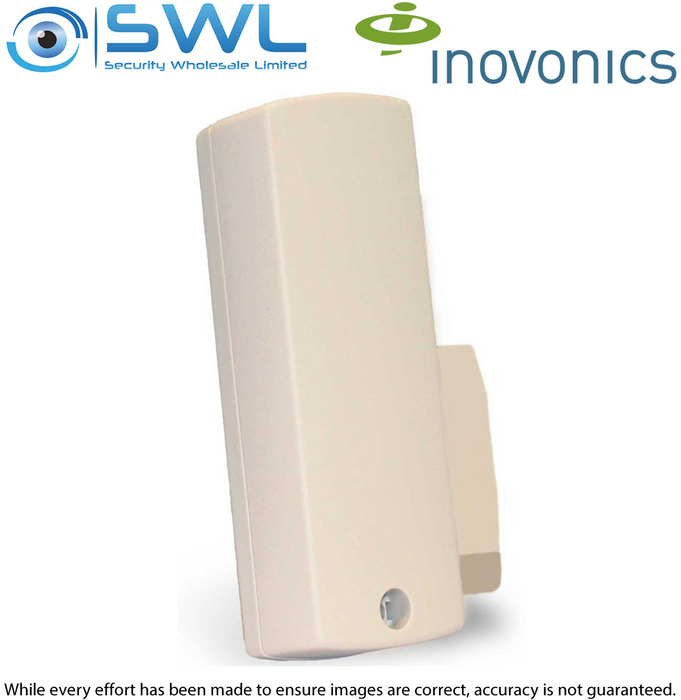

Inovonics EN1215WEOL: Door/ Window Transmitter with Reed Switch
Stock Code:
32021
POA
Description
The Inovonics EN1215WEOL door/window with wall tamper and EOL has a built-in magnetic reed switch on the side, with a magnet that supports a 5/8" gap. A 2.2K ohm end of line resistor is included with the transmitter and is required to operate it. The transmitter is fully supervised and includes a wall tamper switch that notifies the system when the transmitter is removed from its mounted surface.
Features:
* End of line resistor supervision* Screw closure housing and wall tamper switch proved additional security
* Can be used with almost any standard NO/ NC contact
* Fully supervised
Specification:
* Dimensions: 10.4 x 4.6 x 2.3 cm* Typical Battery: 3-5 years
* Internal Battery: Panasonic CR123A 07090
* External Contacts: Normally open or normally closed
* External Contact cabling requirements: 14-22 gauge wire, unshielded
* Distance, External Contact to Trasmitter: 3m Maximum
* Distance, Magnet to Internal Contact Magnetic Reed Switch: 1.6cm
* Operating Environment: Temperature: 0 to 60°C; 0 to 48°C for UL installations.
* Humidity: Up to 90% (non-condensing)
* EchoStream® Frequency: 902-928 MHz, frequency hopping spread spectrum
* Check-in time Frequency: 3 Minutes
* Regulatory Compliance: FCC, ISED, RCM, RoHS
* Specific UL Compliance: UL365, UL1023, UL1076, UL1610, ULC /ORD-C634-86, ULC/ORD-C1023-74
