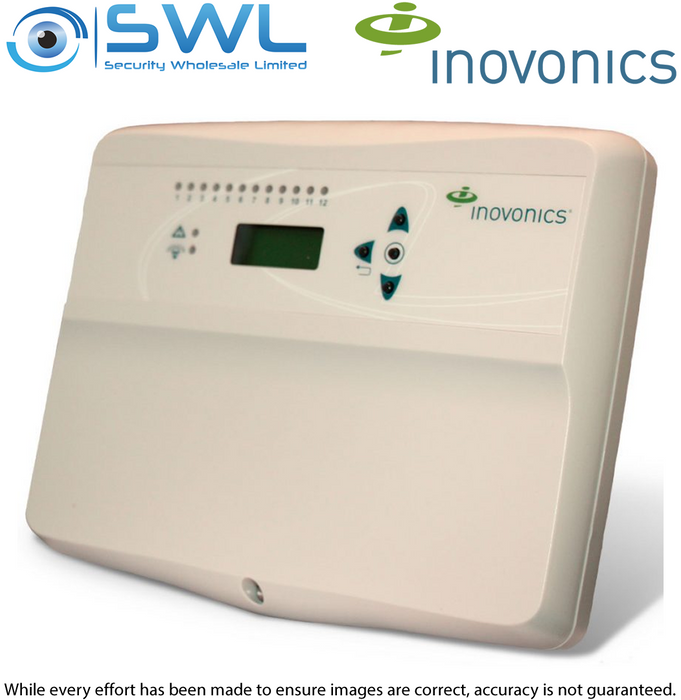

Inovonics EN4232MR 32 Zone Add-On Receiver c/w Relay Outputs, Multi-CH
Stock Code:
32032
POA
Description
The Inovonics 32 zone multi-condition receiver with relays programs and supervises up to 32 single or multiple condition transmitters. This receiver includes Form C relays for each output, allowing connection to any hardwired panel, or stand-alone wireless application.
Features:
* Add up to 32 high performance EchoStream wireless transmitters to any installation* Includes support for both single and multiple condition transmitters
* Two line text display shows condition of each transmitter, provides log of past events, and displays signal strength
* Outputs can be configured in follower, latching, momentary, or toggle modes independently
* Case tamper protection, jam detection, and internal antennas for a secure wireless implementation
* Wireless programming routine built into the receiver
Specification:
* Dimensions: 222 x 178 x 41.5mm* Power Requirement: 11-14 VDC; 500 mA 34510
* Reset Input: Contact closure, momentary low
* Transmitters Accepted: 32
* Number of Alarm Outputs: 11 x relay outputs 1A @ 28 VDC
* Number of Fault Outputs: 1 x relay output 1A @ 28 VDC
* Operating Environment: Temperature: 32°- 140°F
* EchoStream® frequency hopping spread spectrum
* Regulatory Compliance: FCC, RoHS, AS/NZS 4268:2008,
* UL Compliance: UL365, UL636, UL985, UL1023, ULC/ORD-C1023-74, UL1610, UL1076.
