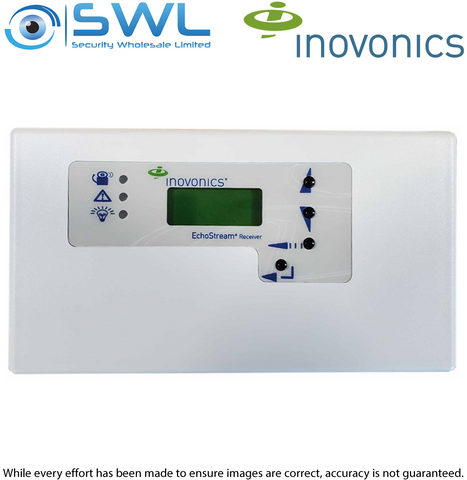

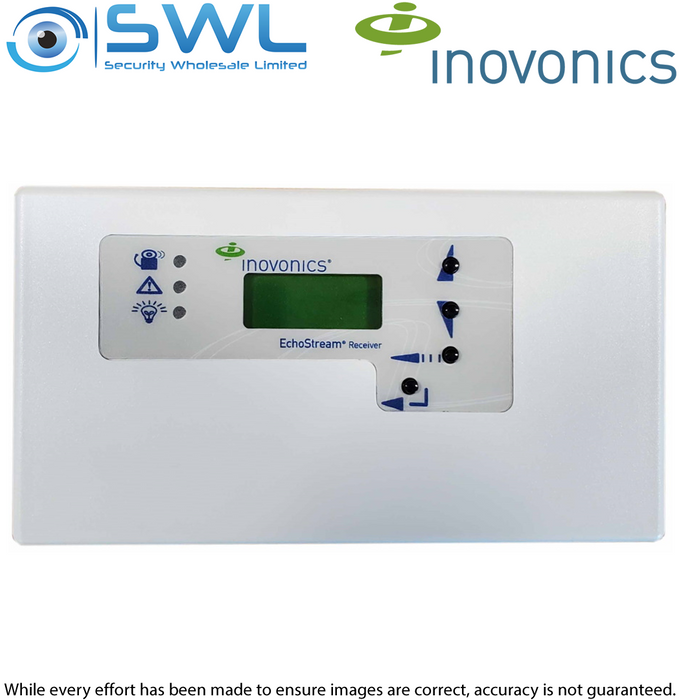

Inovonics EN4216MR 16 Zone Add-On Receiver c/w Relay Outputs, Multi-CH
Description
The Inovonics 16 zone multi-condition receiver with relay outputs programs and supervises up to 16 single or multiple condition transmitters. This receiver includes Form C relays for each output, allowing connection to any hardwire panel, or stand-alone wireless application.
Key Features:
* Add up to 16 high performance EchoStream wireless transmitters to any installation
* Includes support for both single and multiple condition transmitters
* Two line text display shows condition of each transmitter, provides log of past events, and displays signal strength
* Six form C relays for connecting to any panel
* Outputs can be configured in follower, latching, momentary, or toggle modes independently
* Case tamper protection, jam detection, and internal antennas for a secure wireless implementation
* Wireless programming routine built into the receiver
Product Specifications:
* Weight: 280g
* Power requirement: 11 - 14 VDC; 400 mA
* Output specifications: Form C relay 1A @ 28 VDC, 0.5A @ 30 VAC resistive load; N/O receiver case tamper contact closure, N/C receiver jam output indication
* Input specifications: A low is less than .5 V; a high is greater than 2.5 V
* Reset input: Contact closure, momentary low
* Number of points/transmitters: 16
* Number of alarm outputs: Five Form C relay outputs
* Number of fault outputs: One Form C relay output
* Operating environment: Temperature: 32°- 140°F
* Humidity: Up to 90% (non-condensing)
* EchoStream® frequency: 902-928 MHz, frequency hopping spread spectrum
* Regulatory compliance: FCC, Industry Canada, RoHS, AS/NZS 4268:2008, UL 365, UL 636, UL 985, UL 1023, ULC/ORD-C1023-74, UL 1610, UL 1076
See specification sheet and related products below.
