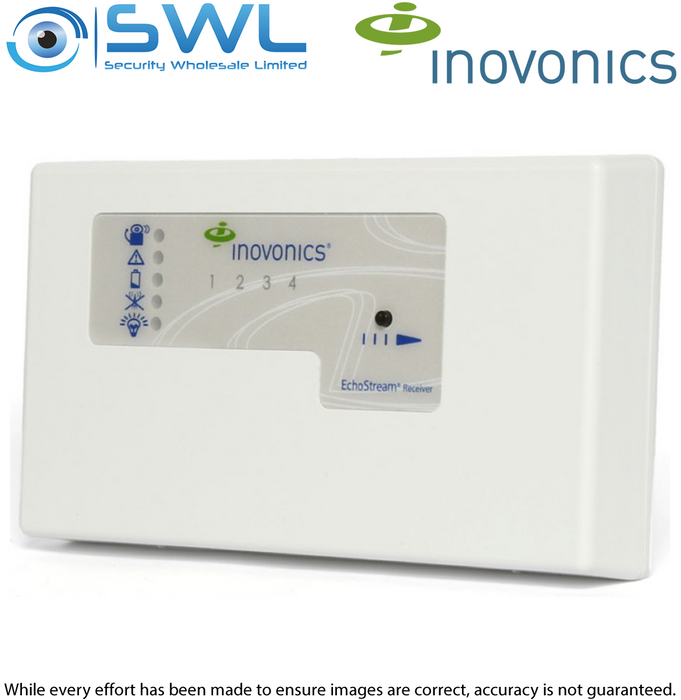

Inovonics EN4204R: 4 Zone Add-On Receiver With Relay Outputs
Stock Code:
32028
POA
Description
The Inovonics four zone add-on receiver with relay outputs programs and supervises up to four Inovonics transmitters. This receiver includes Form C relays for each output, allowing connection to any hardwire panel or stand-alone wireless application.
Features:
* Add up to four high performance EchoStream wireless transmitters to any installation.* LED allows the user to view the current status of all four transmitters
* Five Form C relays for connecting to any panel: four alarm, one fault
* Outputs can be configured in follower, latching, momentary, or toggle modes independently
* Case tamper protection, jam detection, and internal antennas for a secure wireless implementation
* Wireless programming routine built into the receiver
Specifications:
* Dimensions: 165 x 90 x 26mm* Transmitters Accepted: 4
* Power requirement: 11 - 14 VDC; 400 mA 34510
* Alarm Output: 4x Relay Outputs 1A @ 28 VDC
* Fault Output: 1x Relay Outputs 1A @ 28 VDC
* Output Specifications: Form C relay 1A @ 28 VDC, 0.5A @ 30 VAC resistive load;
- N/O receiver case tamper contact closure,
- N/C receiver jam output indication
* Operating Environment: Temperature: 32°- 140°F
* EchoStream® Frequency hopping spread spectrum
* Regulatory Compliance: FCC, RoHS, AS/NZS 4268:2008
* UL Compliance: UL365, UL636, UL985, UL1023, ULC/ORD-C1023-74, UL1610, UL1076
