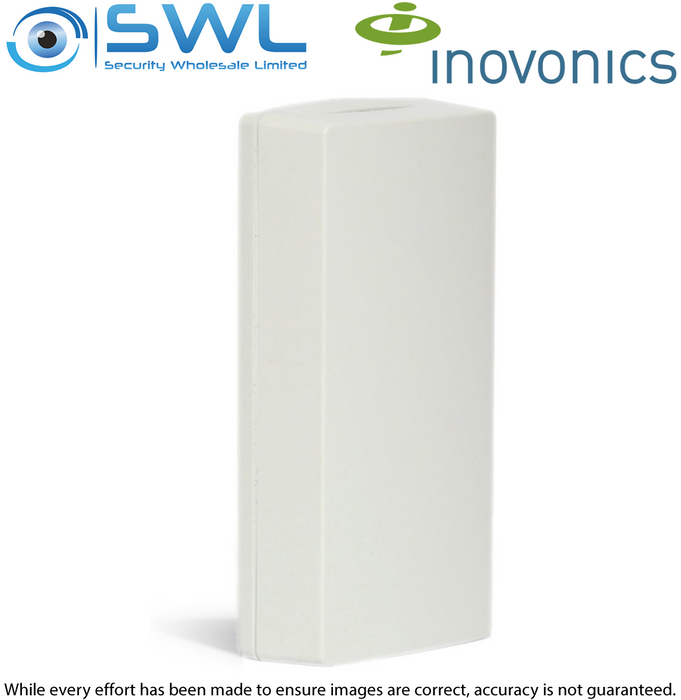

Inovonics EN1210 Single Input Universal Transmitter
Description
The Inovonics single input universal is designed for use with any standard normally open or normally closed contact. It is fully supervised and includes case tamper and battery.
Product Features:
* Mounting bracket included for quick and easy installation
* Can be used with almost any standard NO/NC contact
* Fully supervised
* Includes case tamper protection
Product Specifications:
* Dimensions: 8.9 x 4.3 x 2.3cm
* Weight: 54g
* Internal battery type: Panasonic CR123A
* Typical battery life: 3-5 years
* External contacts: Normally open or normally closed
* External contact cabling requirements: 14-22 gauge wire, unshielded
* Distance, external contact to trasmitter: 3m maximum
* Operating environment: Temperature: -20 to 60°C
* Humidity: Up to 90% (non-condensing)
* EchoStream® frequency: 902-928 MHz, frequency hopping spread spectrum
* Check-in time frequency: EN1210: 3 minutes; EN1210-60: 60 minutes; EN1210-240 minutes
* Regulatory compliance: EN1210: FCC, ISED, RCM, RoHS; EN1210-60 and EN1210-240: FCC, RoHS, UL 25601
See specification sheet and related prioducts below.
