ONETOP ES20M: High Security Electric Strike Fail Safe/ Secure WITH MONITORING

Stock Code:


ES20M: High Security Electric Strike Fail Safe/Secure - Full Monitoring & Anti-tamper

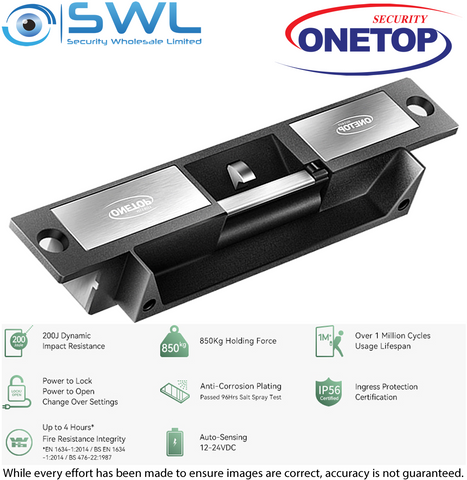

The ES20M Strike Lock is a fully monitored high security door strike. The ES20M is designed to provide Power to Lock (PTL) or Power to Open (PTO) change over by rotating the 'capstan' locking mechanism without tampering with the internal locking operations.

Manufactured from stainless steel alloy the E20M has a holding force of up to 850Kg, 160J impact resistance, 1 million uses and accepts DC voltages from 10 to 30v. The ES20M comes with full monitoring features including Lock Status Sensor, Door Status Sensor, and 'Anti-Tamper' switch.

Specification - ES20M
* Certifications - ROHS, CE, Intertek. BS EN1634-1: 2024 Fire rated 4 hours
* Fail Safe / Fail Secure - Can be manually switched between PTO and PTL
* Lock Dimension - 176.0L x 44.5W x 26.5H (mm)
* Lock Operating Voltage -12/24VDC +/- 10%
* Lock Operating Current - 12VDC 220mA, 24VDC 120mA
* Output Signals - see specification sheet
* Lock Holding Force - 850Kg
* Impact Force - 160J
* Weight - 0.6Kg
* Surface Finish - Stainless Steel Body

See specification sheet for Wiring & Voltage Settings
