ONETOP ES2012: Electric Strike Fail Safe or Secure, IP56, 750Kg
Stock Code:
58104
POA
Warranty Details:
1 Year Return to Base
Description

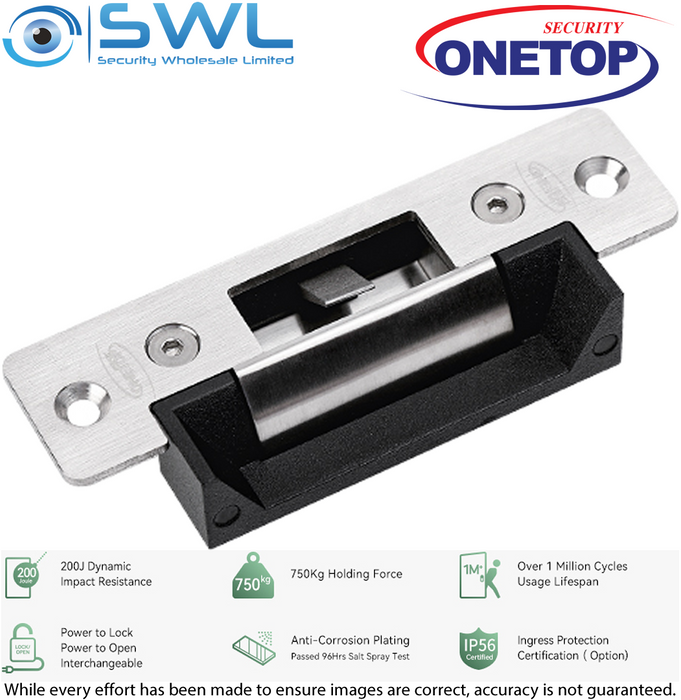

The ES2012 is a high quality electric strike operated on 12 or 24 VDC, suitable for use with surface mount mechanical door locks. This device can be configured easily on site to fail safe or fail secure and have no loose pins. The changeover is achieved without removal of the strike body through a patented screw cap part. The ES2012 is IP56 weather resistant. Extension lips of different lengths are available.
Features:
* Holding Force: Up to 750Kg* Surface Finish: Brush stainless steel faceplate,
- Stainless steel keeper,
- Powder coated black housing.
* Dimensions: L 123.7 x W 43 x D 35mm
* Fail Safe/ Fail Secure: Interchangeable
* Faceplates - See specification sheet
* Lock Operating Voltage: 12/ 24VDC +/- 10%
* Lock Operating Current:12VDC@200 mA, 24VDC@100 mA
* Impact Resistance: Up to 160J
* Expected Lifespan: Over 1 million cycles
* Weight: .42Kg
* Compliance: CE, RoHS
See specification sheet below.
