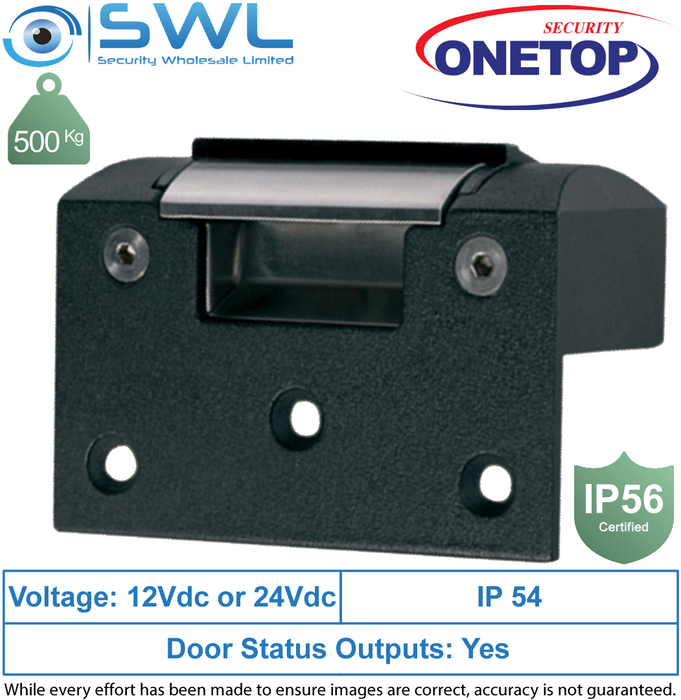

ONETOP ES15M:Electric Strike RIM Mount Fail Safe/ Secure, MONITORED, IP56, 500Kg
Stock Code:
58106
POA
Description
The ES15 are high quality IP56 weather resistant easy to install electric door strikes suitable for use with surface mount mechanical rim locks. The device operates on 12 or 24VDC voltage and can be configured easily on site to fail safe or fail secure mode and have no loose pins. The changeover is achieved without removal of the strike body but through a patented screw cap feature.
Features:
* Holding Force: 500Kg* Surface Finish: Anodized Aluminum Housing
* Interchangable: Fail Safe/Secure, Power to Open/Power to Lock
* Dimensions: L 93.5 x W 67.5 x D 39.8mm
* Output Signals: Door Status Sensor (DSS), COM/ NO/ NC
* Operating Voltage: 12/ 24VDC ±10%
* Operating Current: 12VDC 200mA, 24VDC 100mA
* Operating Conditions: Temperature:10°C ~ 60°C
* Operating Humidity: 0 ~ 85% (non-condensing)
* Weight: 0.45Kg
* Expected Lifespan: Over 1 million cycles
See specification shet below.
