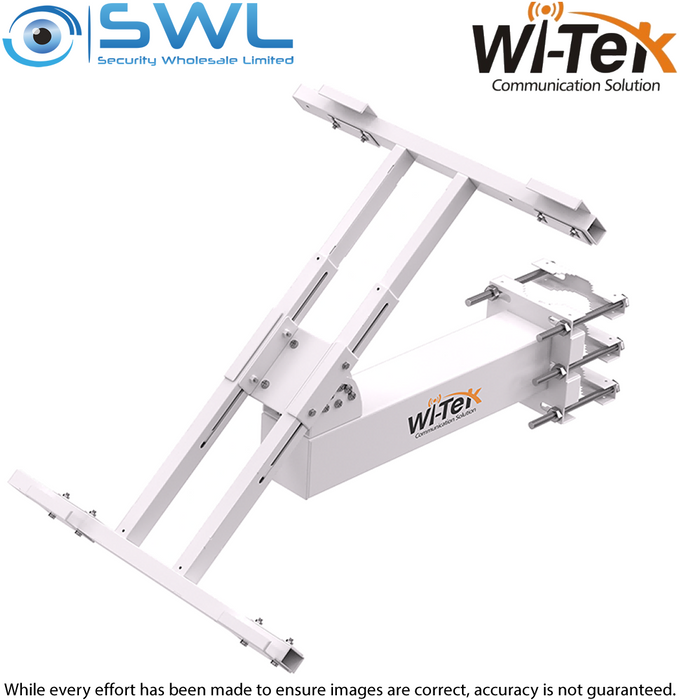

Wi-Tek WI-BRKP133: Bracket For Solar Panel, 76~133mm Round Pole
Stock Code:
48490
POA
Description
This Wi-Tek solar panel mounting bracket is designed for small-medium pole-mounted solar power applications. Using a modular installation design, suitable for 76~133mm round poles, it's also compatible with square poles, can adapt to a variety of solar panels, ideal for up to 900mm wide and 25~35mm thickness. Made with heavy galvanized steel, it is baking varnish, anti-ultraviolet, resists corrosion and is designed for durability in harsh environments.
Features:
* Rugged construction* Advanced Outdoor Protection
* Flexible Modular Installation
Mechanical Properties:
* Material :SGCC* Thickness: 2mm
* Colour: White
* Dimensions: Square arm: 100 x 100 x 500mm
* Angle adjustment part: 100 x 100 x 78mm
* Solar panel Installation Kit: 930 x 580 x74mm (Max. size), 540 x 580 x 74mm (Min. size)
* Pole installation Kit: 170 x 180 x 170mm@133mm pole, 170 x 180 x 90mm@76mm pole
* Weight: 13.7kg
* Packed Weight 14.8kg
Solar Panel Installation:
* Adjustable Angle Recommend: 0°~50°; Maximum: 0~75°* Recommend Solar Panel Width: 540mm~900mm
* Adjustable Solar Panel Thickness: 25mm~35mm
* Recommend Solar Panel Weight: <30kg
* Installation Pole* :
- Recommend: 76mm~133mm round pole mounted, 55mm~75mm square pole mounted
- Maximum: 60mm~133mm round pole mounted, 50~130mm square pole mounted
