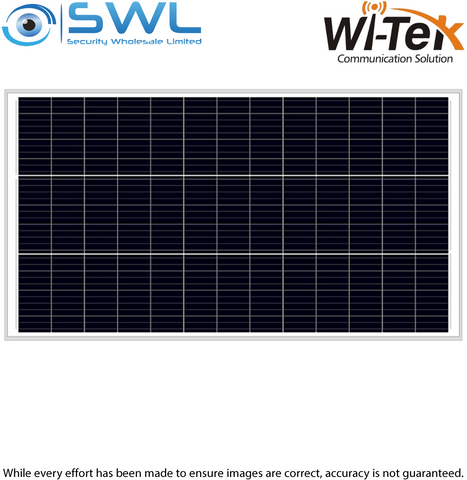

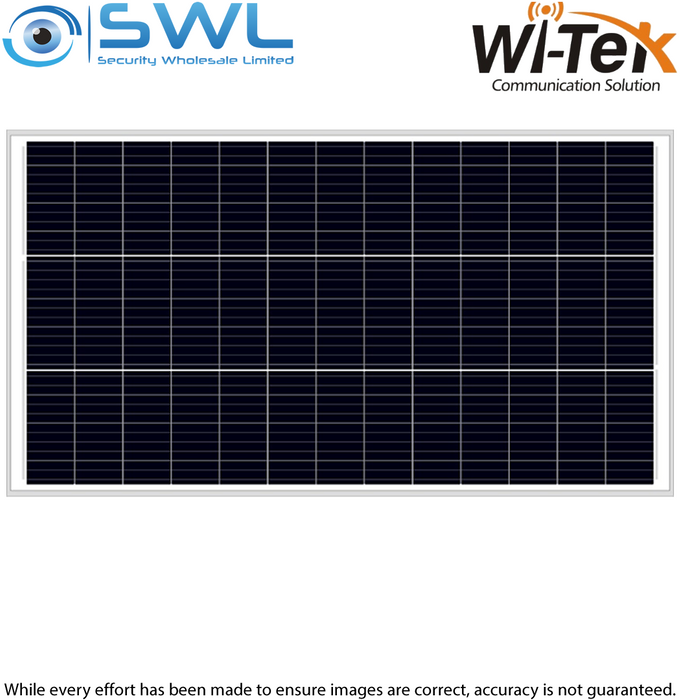

Wi-Tek WI-PV200-39 200W: Single Crystal Silicon Solar Panel, For 12V Batt System
Stock Code:
48485
POA
Description
Electrical Data (STC):
Electrical Data (STC)* Peak Power (Pmax): 200W
* Power Tolerance: 0~+3%
* Maximum Power Voltage (Vmp): 19.8V
* Maximum Power Current (Imp): 10.6A
* Open Circuit Voltage (Voc): 27V
* Short Circuit Current (Isc) : 11.65A
* Module Efficiency: 24.5 (%)
Mechanical Characteristics:
* Cell Type: MONO Single crystal silicon* No. of Cells: 39
* Dimensions: 1480 x 670 x 30mm
* Weight: 9.9Kg
* Front Glass: 3.2mm high transmission tempered glass
* Frame: Anodized Aluminum Alloy
* Junction Box Ingress Protection: IP65
* Output Cables: 2.5mm2 80cm cable, MC4 connector
* Max Wind Load: 60m/s
* Operating Temperature: -40~+85°C
Kit Inludes:
* 1 x Solar Panel* 2 x MC4 Extension Cord (2.5mm2 , 1.5m, MC4, Without insulation layer at end 0.5cm)
