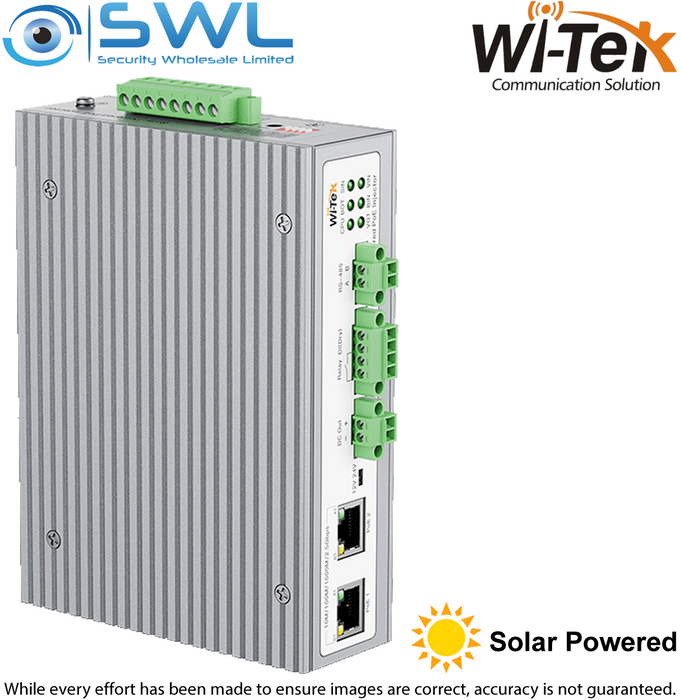

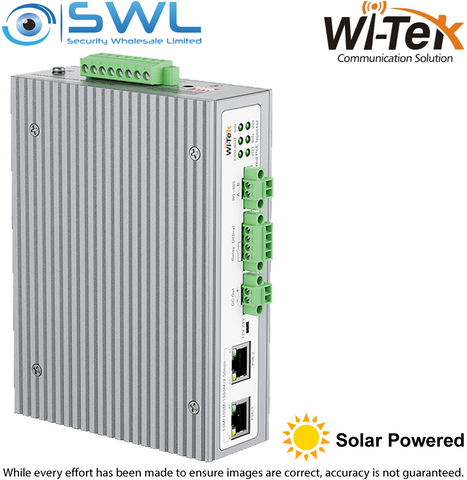

Wi-Tek WI-PS402-UPS-I: Solar Powered PoE Injector, 2x RJ45 2500Mbps, PoE Output
Stock Code:
48510
POA
Warranty Details:
3 Years Return to Base
Description
Wi-Tek's Solar Powered PoE Injector is designed for CCTV surveillance and wireless networks. Designed around renewable energy, it can be charged by the inexhaustible and natural resource of solar power. It conserves green energy economically to power remote IP cameras and wireless APs.
Features:
* Built-in MPPT (Maximum Power Point Tracking) Controller* Zero-carbon, Green, Stable Power Supply
* Easy, Intelligent Photovoltaic Power and Battery Status Monitoring
* Wi-Tek Cloud Monitoring, requires the IOT-100 48500 or IOT-110 48502
Specifications:
* Interface: 2*10/100/1000/2500Mbps PoE++ RJ45 port* Peripheral Interface
- 1x 2-PIN 3.81mm RS-485 (Data A, B) terminal blocks
- 1x 2-PIN 3.81mm 12V/24V DC output@30W max. terminal blocks
- 1x 4-PIN 3.81mm terminal blocks:
- 1x 2-PIN DI (Dry Contact, Passive open/closed circuit detection)
- 1x 2-PIN DO (Relay, Load capability: 5A@12V DC for motor load, 10A@12V DC for resistive load)
- DI and DO are allowed to view status and settings in the Wi-Tek cloud.
- 1x 3.5mm temperature sensor input jack plug
* Power Input Port:
- 8-PIN 5.08mm terminal blocks:
- 2x 2-PIN Solar input in parallel
- 1x 2-PIN DC Input
- 1x 2-PIN Battery charging & discharging
* Max. wire diameter: 2.5mm2 /12AWG
Do not connect active devices to DI (Dry) !
