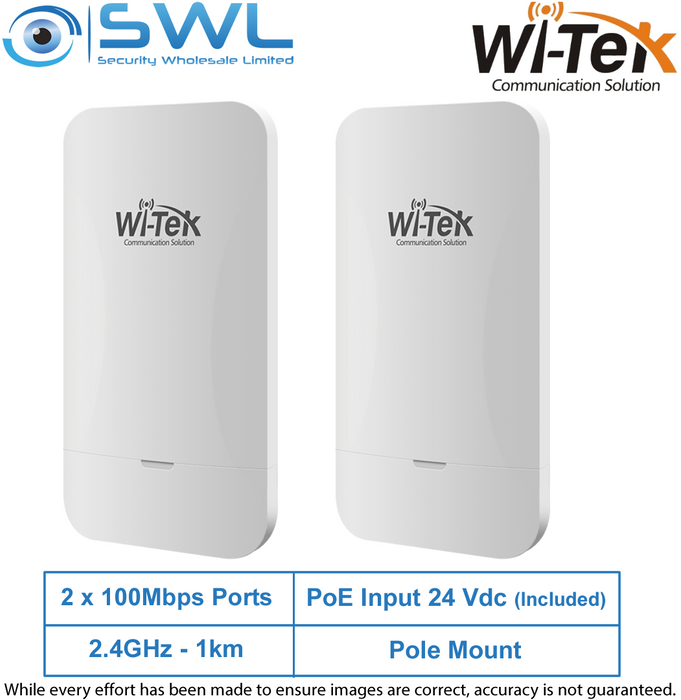

Wi-Tek WI-CPE110-KIT V2: 2x 100Mbps PoE Ports, 2.4GHz, 1Km, 24V PoE, WiFi AP
Stock Code:
48350
POA
Description
Features:
* Easy to set up* Ultra-bandwidth
* Long-Distance Data Transmission up to 1Km
* PTP/ PTMP
* Multiple Power Supply Modes
* Wi-Tek Cloud Management
Hardware Specification:
* Interface: 1x 10/100Mbps WAN (PoE IN) RJ45 port, 1x 10/100Mbps LAN RJ45 port* Frequency Range: 2.401GHz ~ 2.483GHz (Channel 1~13)
* Compliant Standards: IEEE 802.11b/g/n
* Spatial Streams: 2x2, MU-MIMO
* Maximum Wireless Rate: 300Mbps@2.4GHz
* Antenna Gain Build-in 8dBi directional antenna
* Half Power Beamwidth (Typ.): Horizontal: 65°, Vertical: 65°
* Transmit Power: 21±2dBm max. (adjustable)
* Recommended Distance: 1Km
*LED Indicators: Power, WAN port, LAN port, Wi-Fi, 4x Signal indicators
* DIP Switch:
H: Base station mode, supports wireless point-to-point and point-to-multipoint long-distance transmission.
C: CPE mode, a receiving point for connecting a wireless base station.
* Power Supply: PoE: 24V@0.5A (4/5+, 7/8-) DC: 12V@1A
* Power Consumption: <4W
* Dimensions: 180 x 88 x 59mm
* Weight: 0.22Kg
* Installation: Wall/ Pole mounted
* Material: Outdoor UV Stabilized Plastic
* Ingress Rating: IP65
