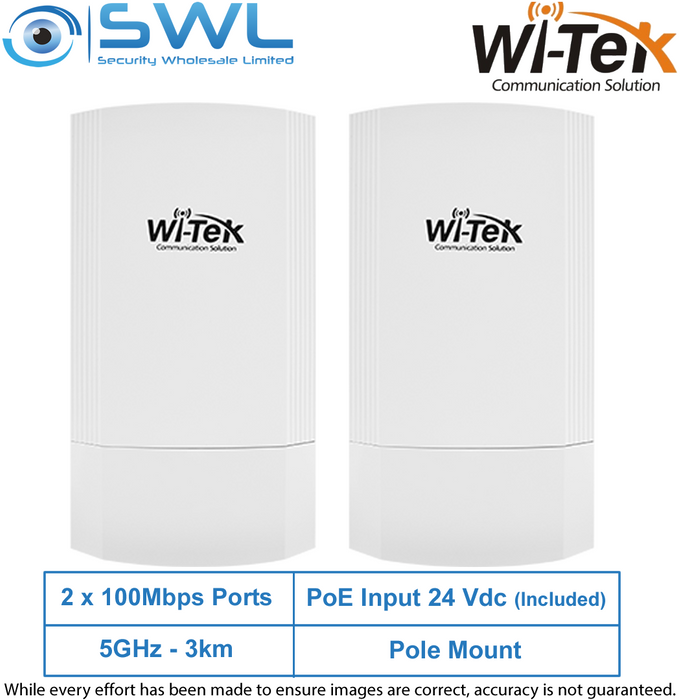

Wi-Tek WI-CPE511H-KIT V2: 2x 100Mbps PoE Ports, 5GHz, 3Km, 24V PoE, WiFi AP
Stock Code:
48355
POA
Description
Features:
* Easy to set up* Ultra-bandwidth
* Long-Distance Data Transmission up to 3Km
* PTP/ PTMP
* 24V Power Supply
* Wi-Tek Cloud Management
Hardware Specification:
* Interface: 1x 10/100Mbps WAN (PoE IN) RJ45 port, 1x 10/100Mbps LAN RJ45 port* Frequency Range: 5.150 ~ 5.850GHz (Channel 36~64, 100~144, 149~165)
* Compliant Standards: IEEE 802.11b/g/n
* Spatial Streams: 2x2, MU-MIMO
* Maximum Wireless Rate: 867Mbps@5GHz
* Antenna Gain Build-in 12dBi directional antenna
* Half Power Beamwidth (Typ.): Horizontal: 33°, Vertical: 33°
* Transmit Power: 19dBm max. (adjustable)
* Recommended Distance: 3Km
*LED Indicators: Power, WAN port, LAN port, Wi-Fi
* DIP Switch:
H: Base station mode, supports wireless point-to-point and point-to-multipoint long-distance transmission.
C: CPE mode, a receiving point for connecting a wireless base station.
* Power Supply: PoE: 24V@0.5A (4/5+, 7/8-)
* Power Consumption: <5W
* Dimensions: 180 x 88 x 59mm
* Weight: 0.26Kg
* Installation: Wall/ Pole mounted
* Material: Outdoor UV Stabilized Plastic
* Ingress Rating: IP65
