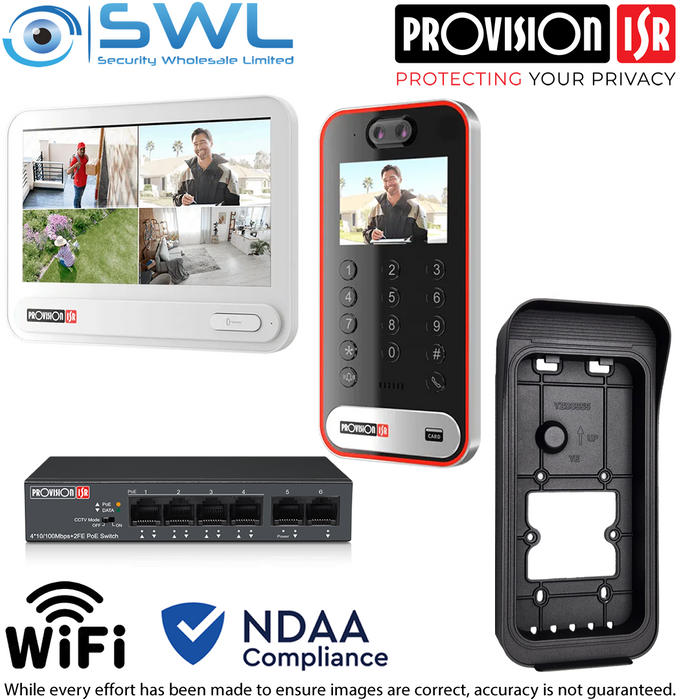

Provision-ISR Intercom Kit:1x Intercom, 1x Port Switch, 1x7" Monitor, 1x Backbox
Stock Code:
33440SR
POA
Description
Kit Includes:
1 x 33440 Provision-ISR INT-320WIPN 2MP Outdoor Station: Wi-Fi, 3.5" Mon NDAA1 x 33442 Provision-ISR MON-TCH7: Indoor Station: 7" Touch Screen, NDAA
1 x Provision-ISR PR-WJB-INT Surface Mounting Box
1 x 34300 Provision-ISR PoES-0460C+2I-V2 : 4 x 10/100 PoE + 2 x 10/100 Link 60W
Intercom Features:
* NDAA Compliant* Max. resolution: 2MP
* Lens: 2.3mm with wide 132° (H) FOV
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* 3D Face Detection & Face Recognition Technology
* 2m IR LED lights
* Door Lock support: Door Sensor Support; Open Door Button
* Keypad Keys: Back-lit in low lux conditions
* In-Built Reader: Supports Mifare & EMC RFID proximity cards
* Weigand: Input for separate Weigand Reader
* Wireless 802.11b/g/n (2.4G ONLY)
* 2-Way Audio Built-in Microphone & Speaker
* Local storage up to 256Gb (not included)
* Tampering alarm support
* Remote Monitoring: IE Browsing, VMS Software, Provision Cam2 Mobile App
* IP65 Rating - dust ingress and water jets
Monitor Features:
* Screen Size: 7" IPS Touch Screen* Max. Resolution: (1024 x 600)
* Brightness: 300cd/m2
* Compression: H.265+ / H.265 / H.264 / MJPEG
* SD Card: Manual Record up to 256GB (not included)
* 8CH input
* Wireless 802.11b/g/n (2.4Ghz ONLY)
* 2-Way Audio: Built-in Michrophone & Speaker
* ONVIF Support
* Weight: ~360g
* Power: DC12V/~200mA / PoE/~6W
Switch Features:
* * NDAA Compliant*Built-in Power Supply - Mains IEC Lead Supplied
* Downlink: 4x 10/100Mbps RJ45 port
* Uplink: 2x 10/100Mbps port
* PoE Power 60W total, 32W port maxium
* Backbone Bandwidth: 1.2Gbps
* Compliance: IEEE802.3af/at Power Over Ethernet
* Surge Protection: Built-in
* Dimensions: 140 x 76.7 x 28mm
* Desk Top Mount
* CCTV Mode: Transmission distance is extended up to 250m (limited to 10Mbps)
