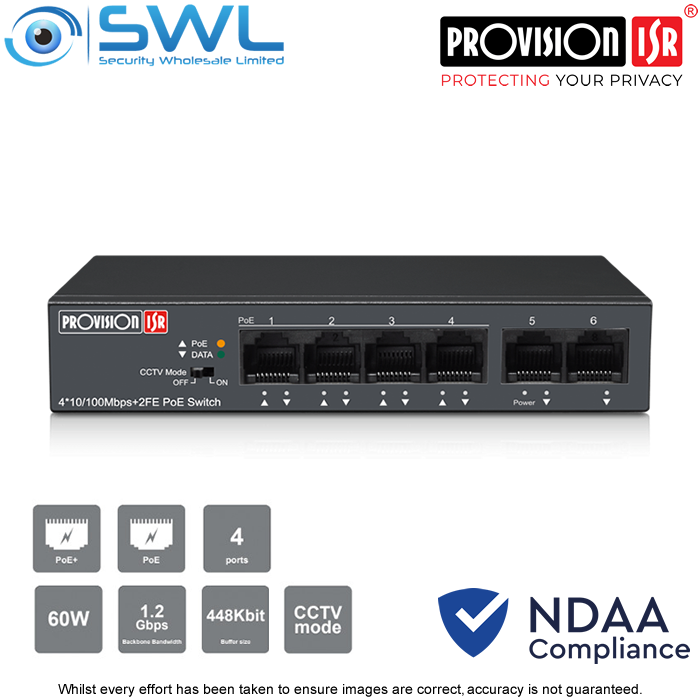

Provision-ISR PoES-0460C+2I-V2 : 4 x 10/100 PoE + 2 x 10/100 Link 60W
Stock Code:
34300
POA
Description
PoE Switch Features:
* NDAA: Compliant Switch* Downlink Ports: 4 x 10/100/Mbps RJ45 port
* Uplink Ports: 2 x 10/100/Mbps
* SFP Ports: None
* Ethernet Standards: IEEE802.3af IEEE802.3at
* PoE Power: Ave. Power per channel 15W, total budget 60W
* PoE Power Max: 30W on 2 channels
* Backbone Bandwidth: 1.2Gbps
* Max. Standard Transmission: 100m
* CCTV Mode: Independent for each downlink port (By DIP Switch)
* Surge Protection: Built-In
* Rack Mount: No
* Dimensions: 140 x 76.7 x 28mm
CCTV Mode:
CCTV mode allows a camera connection up to a 250m distance.This extension of distance reduces the Ethernet speed to 10Mbps.
