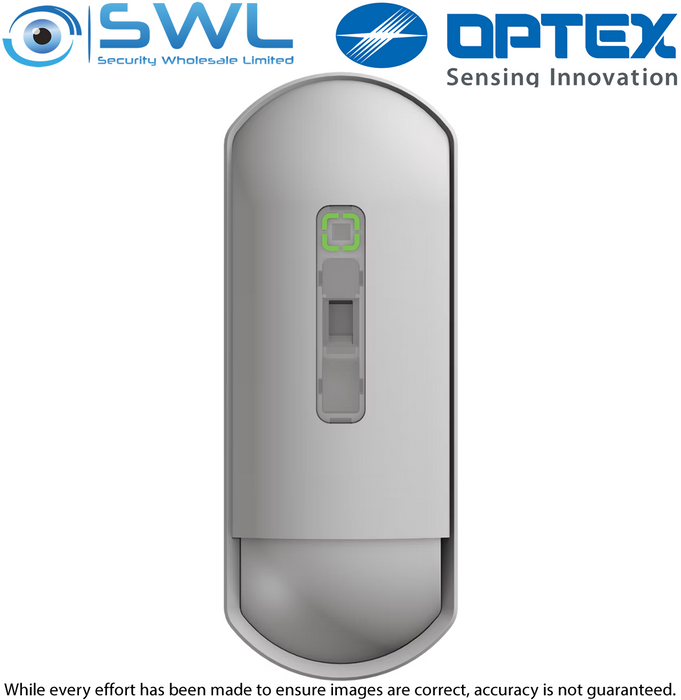

Optex FLX-A-DAM-X5:PIR/ MW Anti-masking, Flip Lens, Wide 15m 85°, Narrow 24m 5°
Description
PIR/MW with anti-masking, 'Flip' lens- wide 15m, narrow 24m, MW disabled in Narrow lens mode.
* Flip Lens - Selectable wide & narrow area with one lens. By turning the lens upside down, the shape of detection area can be changed from WIDE to NARROW.
* Easily Viewable LED Color
* Human-Catch Element - The new element size has been designed to create proper detection areas and optimize detection sensitivity.
* Refined Spherical Lens
* 180 Degree Cover Lock
* SMDA Logic - By analyzing detection patterns and environmental information, SMDA improves immunity against various noise factors such as climate changes and vegetation sways, and can distinguish between the cause of nuisance false alarms and genuine intrusions.
* Double Protection Anti-Masking - FlipX has IR Anti-masking function generating a trouble signal when detector is masked.
* Down Zone Switch - Downzone detection area is selectable “ON” or “OFF”.
* EOL Resistor Socket
* Super High Sensitivity - Even if temperature between human and background becomes close, Super High PIR Sensitivity can be selectable to provide far greater catch performance for the site where mis-alarm is unacceptable.
Specifications:
* Mounting height - 2.0 to 3.0 m
* Detection method - Passive infrared & Microwave
* PIR coverage - Wide: 15 m (50 ft.) 85°/ Narrow: 24 m (80 ft.) 5° (No MW detection at “Narrow” setting) FOV
* Warm up period - Approx. 60 s (LED blinks)
* Alarm period - 2.0 ± 0.5 s
* LED indicator - Multiple: Warm-up / Green:Alarm and Masking detection / Yellow: Self test error / Red:Low voltage
* Power input - 9.5 to 16 VDC
* Current draw - 16 mA (normal) 21 mA (max.) at 12 VDC
* Trouble output - N.C. 24 V DC 0.1 A max. (Resistive load)
* Alarm output - N.C. 24 V DC 0.1 A max. (Resistive load)
* Tamper output - N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
* Operating temperature - -20°C to +45°C
* Temperature compensation - Digital (SMDA)
* Environmental humidity - 95% RH max
* Mounting - Wall, Corner (Indoor)
* Weight - 200g
