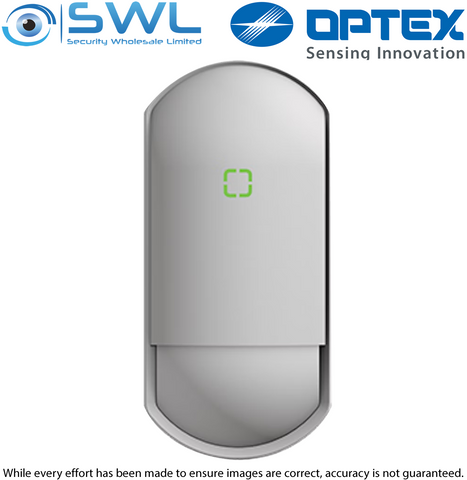

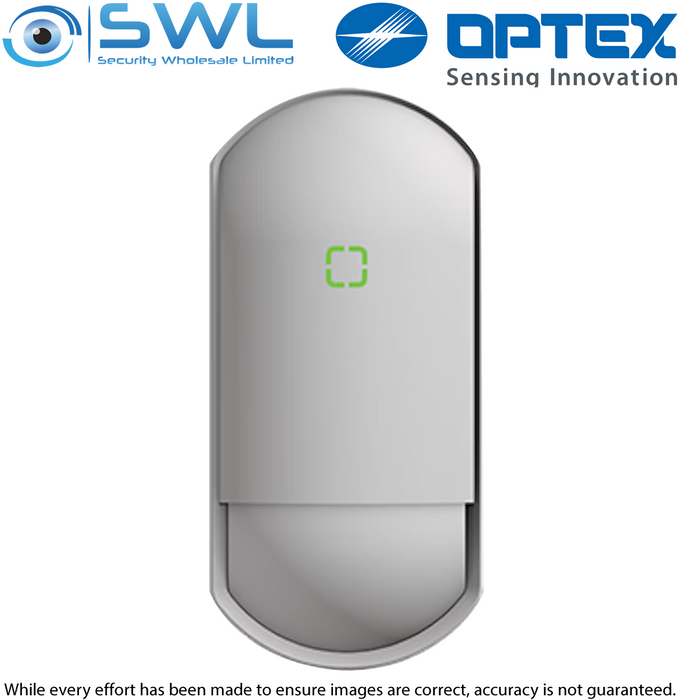

Optex FLX-S-DT-X5: Indoor Dual Tech Combo PIR & Microwave Detector 12m 85°
Stock Code:
27850
POA
Description
Part of the FlipX Standard Series, the FLX-S-DT-X5 is OPTEX's latest indoor sensor with a new to the market, innovative pyroelectric sensor and human catch element. Equipped with a rotatable lens, FlipX sensors allow an easy switch from wide to narrow detection, meaning you can do twice as much with a single product. It's the perfect choice for everyday intrusion detection in residential or light commercial sites.
Features:
* PIR Coverage: Wide = 12m 85° AOV* Narrow: 18 m 5° (No MW detection at “Narrow” setting)
* Mounting Height: 2 to 3m . 2.4m recommended.
* Detection Method: Passive Infrared & Microwave
* Easily Viewable LED Color
* Human-Catch Element
* Refined Spherical Lens
* Alarm Period: 2.0 ± 0.5 s
* Warm Up Period: Approx. 60s (LED blinks)
* Power Input: 9.5 to 16VDC
* Current Draw: 11 mA (normal) 14mA (max.) at 12VDC
* Alarm Output: N.C. 24VDC 0.1A max. (Resistive load)
* Tamper Output: N.C. 24VDC 0.1 A max. (Open when the cover is removed)
* Operating Temp: -20°C to +45°C
* Temperature Compensation: Digital (SMDA)
* Environmental Humidity: 95% RH max
* Weight: 105g
* Certification: UL, SBSC, EN50131-2-2 (Indoor)
* Dimensions: 130mm x 62mm x 56mm
