TANE 55 Surface Reed: 50.8× 9.6× 10mm. 19mm Gap.Centre Lead Type
Stock Code:
27036
POA
Description
TANE 55 Surface Reed specification
* Contact Size: 50.8mm×9.6mm×10mm ( 2" L×.38" W×.39" H)
* Standard Magnet Size: Same
* Standard Gap: 19mm
* Colour: White
* 305mm (12") 22 AWG Leads Standard
* Standards: UL listed, equipment 21S4. File BP4702.
* Standards: CE, RoHS

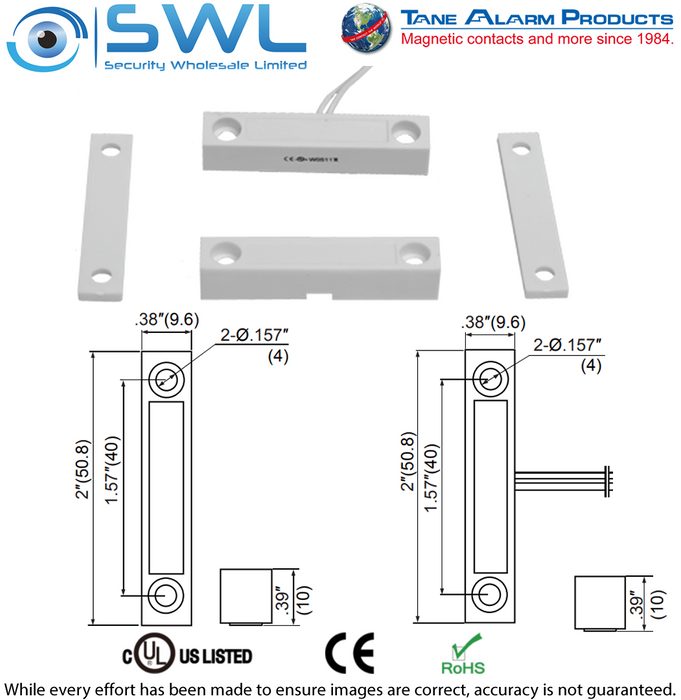

See specification sheet below.
Downloads
Stock Level:
In Stock
