TANE FM-106 Surface Reed: 33.6× 13× 7.5mm. 21mm Gap. Centre Lead Type
Stock Code:
27035
POA
Description

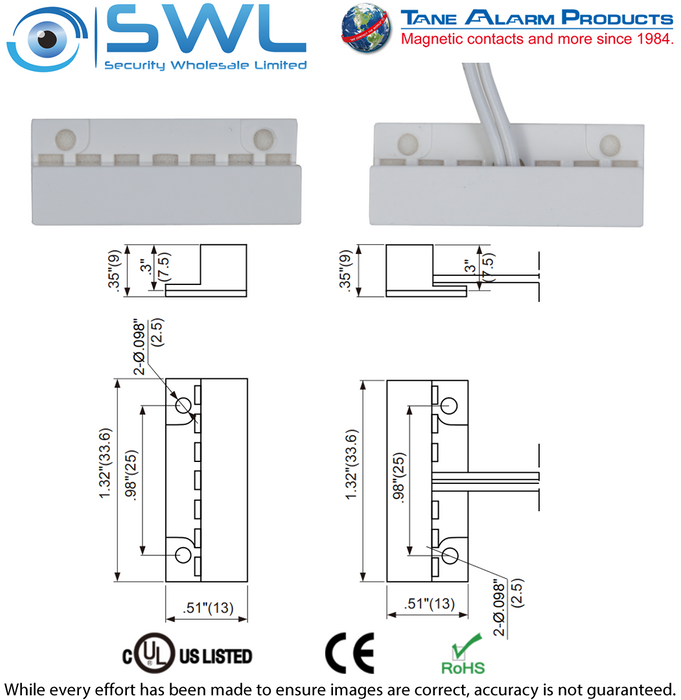

TANE Surface Mount Contact: 1.32"L×.51"W×.3"H Center Lead Surface Mount Type
* Contact Size: 33.6mm (L) ×13.5mm (W) ×7.5mm (H) (1.32" ×.53"×.3")
* Standard Magnet Size: 33.6mm (L) ×13.5mm (W) ×7.5mm (H) (1.32" ×.53"×.3")
* Standard Gap: 21mm (.83")
* Colour: White
* 12"(305mm) 22 AWG Leads Standard
* Standards: UL listed, equipment 21S4. File BP4702.
* Standards: CE, RoHS
See specification sheet below.
Downloads
Stock Level:
In Stock
