TANE FM-102 Surface Reed: 33.6× 13× 7.5mm. 21mm Gap. Side Lead Type
Stock Code:
27034
POA
Description

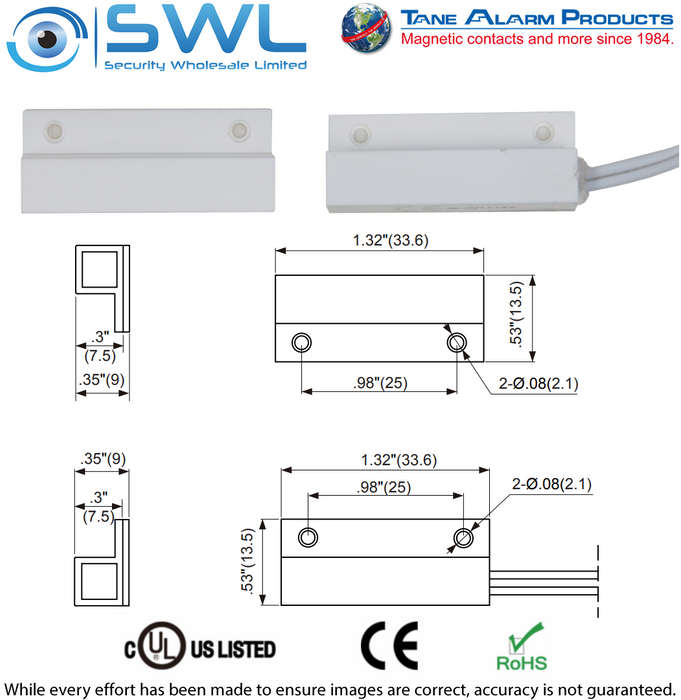

FM-102 Surface Reed Specification
* Contact Size: 33.6 (L) ×13.5 (W) ×7.5 (H) (1.32" × .53"× .3")
* Standard Magnet Size: 33.6 (L) × 13.5 (W) × 7.5 (H) (1.32" × .53"× .3")
* Standard Gap: 21mm (.83")
* Colour: White
* 305mm (12") 22 AWG Leads Standard
* Standards: UL listed, equipment 21S4. File BP4702.
* Standards: CE, RoHS
Side lead connection.
See specification sheet below.
Downloads
Stock Level:
In Stock
