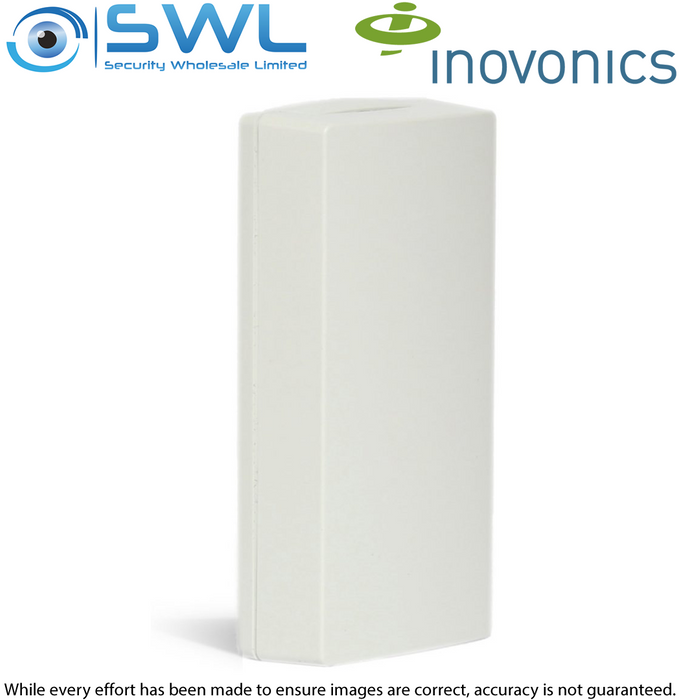

Inovonics EN1212 Dual Input Universal Transmitter

Stock Code:
32019
POA

Description

The Inovonics EN1212 dual input universal transmitter is designed for use with any standard contact or sensor that provides a contact closure. The primary alarm input is selectable – normally open or closed – and the secondary alarm input is set to normally closed only.

Key Features:
* Supports dual inputs
* Can be used with almost any standard NO/NC contact
* Fully supervised
* Includes case tamper protection

Specifications:
* Dimensions: 8.9 x 4.3 x 2.3cm
* Weight: 54g
* Internal battery type: Panasonic CR123A
* Typical battery life: 3-5 years
* External contacts: Input one can be normally open or normally closed; input two is always normally closed
* External contact cabling requirements: 14-22 gauge wire, unshielded
* Distance, external contact to trasmitter: 3m maximum
* Operating environment: Temperature: -20 to 60°C
* Humidity: Up to 90% (non-condensing)
* EchoStream® frequency: 902-928 MHz, frequency hopping spread spectrum
* Check-in time frequency: EN1212: 3 minutes; EN1212-60: 60 minutes
* Regulatory compliance: EN1212: FCC, ISED, RCM, RoHS; EN1212-60: FCC, RoHS, UL 2560

See below to download pdf.
