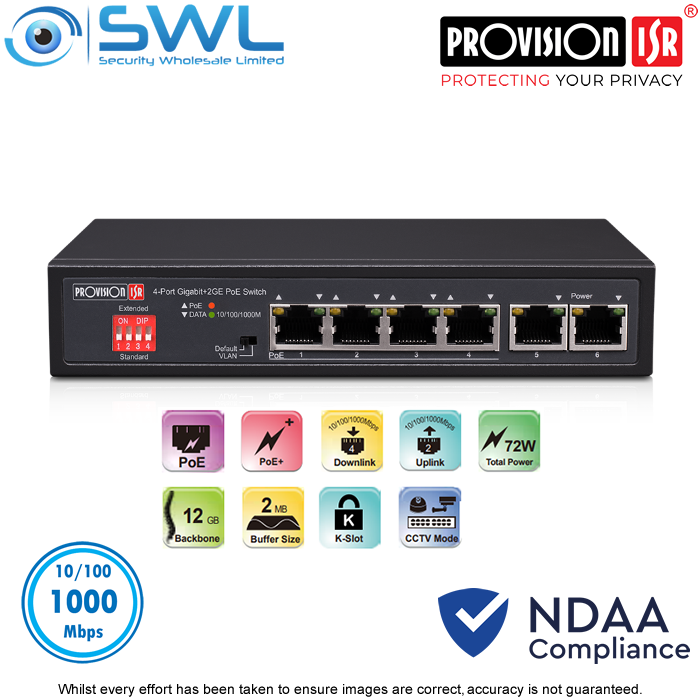

Provision-ISR PoES-0472GC+2G: 4 x Gigabit PoE + 2 x Link 72W
Stock Code:
34301
POA
Description
PoE Switch Features:
* NDAA: Compliant Switch* Downlink Ports: 4 x 10/100/1000Mbps RJ45 port
* Uplink Ports: 2 x 10/100/1000Mbps
* SFP Ports: None
* Ethernet Standards 1: IEEE802.3, IEEE802.3u, IEEE802.3ab,
* Ethernet Standards 2: IEEE802.3x, IEEE802.3af, IEEE802.3at.
* PoE Power: Ave. Power per channel 18W, total budget 72W
* PoE Power Max: 30W on 2 channels
* Backbone Bandwidth: 12Gbps
* Max. Standard Transmission: 100m
* CCTV Mode: Independent for each downlink port (By DIP Switch)
* Surge Protection: Built-In
* Rack Mount: No
* Dimensions:160 x 93 x 28mm
CCTV Mode:
CCTV mode allows a camera connection up to a 250m distance.This extension of distance reduces the Ethernet speed to 10Mbps.
