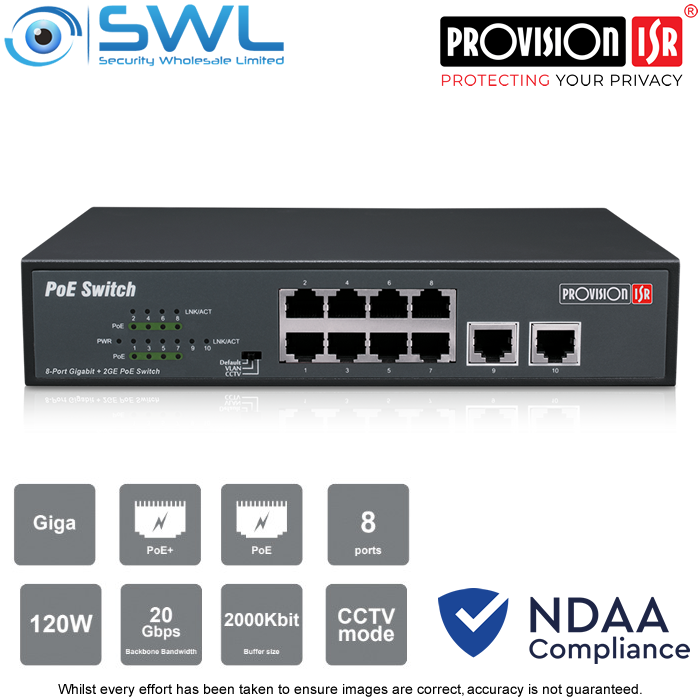

Provision-ISR PoES-08120GC+2GI: 8 x Gigabit PoE + 2 x Link 120W
Stock Code:
34305
POA
Description
The “PoES-08120GCL+2Combo” is a 10*10/100/1000Mbps 8-port PoE + 2G downlink/uplink ports Ethernet switch. The switch auto-detects connected IEEE802.3af/at ompliant Powered Devices (PD) and supplies power to them. The PoE objective is to deploy independent power to places with no power source and outlets.The CCTV mode allows a camera connection up to a 250m distance.The CCTV mode allows a camera connection up to a 250m distance.
PoE Switch Features:
* NDAA: Compliant Switch* Downlink Ports: 8*10/100/1000Mbps RJ45 port
* Uplink Ports: 2 x 10/100/1000Mbps
* SFP Ports: None
* Ethernet Standards: IEEE802.3af IEEE802.3at
* PoE Power: Ave. Power per channel 18W, total budget 120W
* PoE Power Max Per Channel: 32W
* Backbone Bandwidth: 20Gbps
* Max. Standard Transmission: 100m
* CCTV Mode: Independent for each downlink port (By DIP Switch)
* Surge Protection: Built-In
* Rack Mount: No
* Dimensions: 220 x 150 x 44mm
CCTV Mode:
CCTV mode allows a camera connection up to a 250m distance.This extension of distance reduces the Ethernet speed to 10Mbps.
