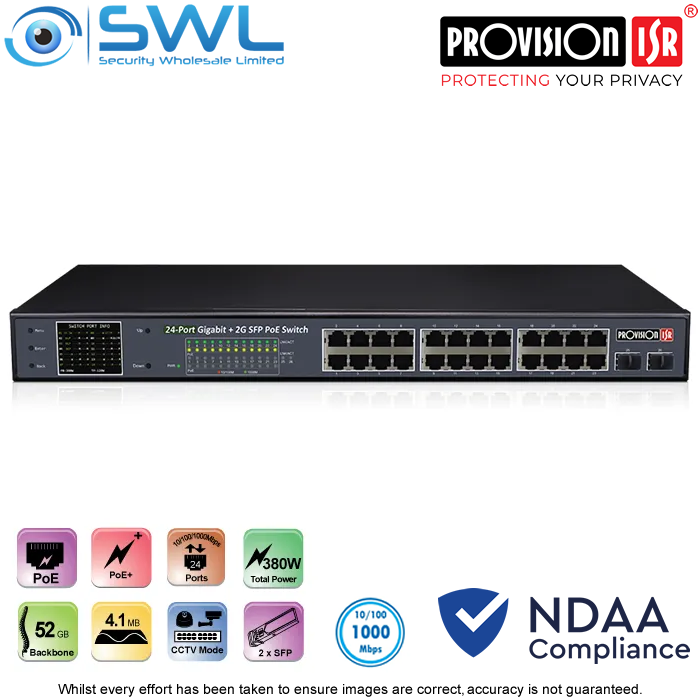

Provision-ISR POES-24370GCL+2SFP: 24x Gigabit PoE + 2x SFP 370W, CCTV Mode 250m
Stock Code:
34320
POA
Warranty Details:
3 Years Return to Base
Description
The PoES-24370GCL+2SFP is a 10*10/100/1000Mbps 24-Port PoE + 2SFP Ports Ethernet switch. The switch auto-detects connected IEEE802.3af/at compliant Powered Devices (PD) and supplies power to them. The PoE objective is to deploy independent power to places with no power source and outlets. CCTV mode allows a camera
connection up to a 250m distance.
PoE Switch Features:
* NDAA: Compliant Switch* 24 x Downlink / Uplink: All PoE ports act as both, 10/ 100/ 1000 Mbps
* SFP Ports: 2 x 10/ 100/ 1000Mbps
* Uplink Ports: SFP only
* Ethernet Standards 1: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z,
* Ethernet Standards 2: IEEE802.3x, IEEE802.3af, IEEE802.3at
* PoE Power: Ave. Power per channel 15.4W, total budget 370W
* PoE Power Max Per Channel: 30W
* Backbone Bandwidth: 52Gbps
* Max. Standard Transmission: 100m
* VLAN: 2 Auto Modes (VLAN / CCTV Modes)
* CCTV Mode: Independent for each downlink port (By DIP Switch)
* Display: Colour LCD Status Monitor
* Power Consumption - PoE On: 260W Max. / PoE Off: 10W Max
* Surge Protection: Built-In
* Rack Mount: Yes
* Dimensions: 440 x 232 x 44mm
CCTV Mode:
CCTV mode allows a camera connection up to a 250m distance.This extension of distance reduces the Ethernet speed to 10Mbps.
