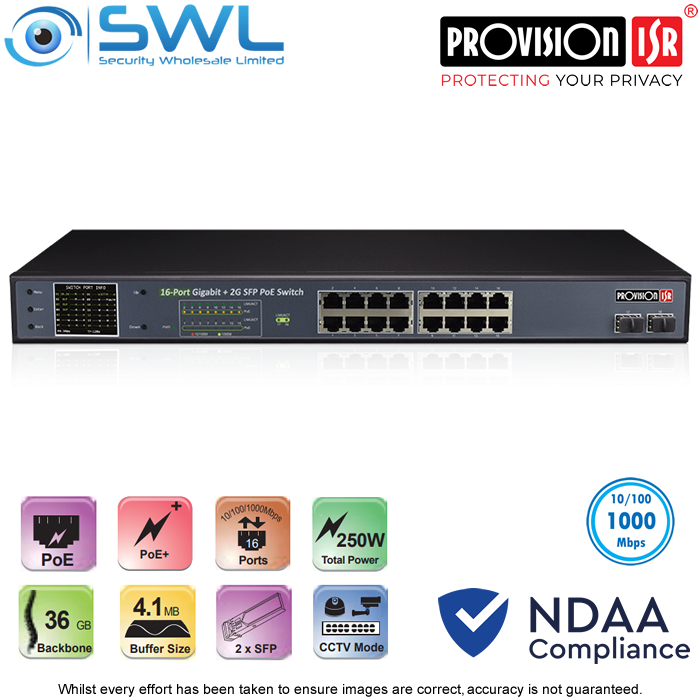

Provision-ISR PoES-16250GCL+2SFP: 16x Giga PoE Switch + 2x SFP 250W, CCTV Mode
Stock Code:
34318
POA
Description
The "PoES-16250GCL+2SFP" is a 10*10/100/1000Mbps rack mountable 16-port PoE + 2SFP ports Ethernet switch. The switch auto-detects connected IEEE802.3af/at compliant Powered Devices (PD) and supplies power to them. The PoE objective is to deploy independent power to places with no power source and outlets. CCTV mode allows a camera connection up to a 250m distance.
PoE Switch Features:
* NDAA: Compliant Switch* PoE 16 Downlink/ Uplink: All ports act as both, 10/100/1000 Mbps
* SFP Ports: 2 x 10/100/1000Mbps
* Ethernet Standards 1: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z,
* Ethernet Standards 2: IEEE802.3x, IEEE802.3af, IEEE802.3at.
* PoE Power: Ave. Power per channel 30, total budget 250W
* PoE Power Max Per Channel: 30W
* Backbone Bandwidth: 36Gbps
* Max. Standard Transmission: 100m
* VLAN: 2 Auto Modes (VLAN / CCTV Modes)
* CCTV Mode: Independent for each downlink port (By DIP Switch)
* Colour LCD Status Monitor
* Power Consumption - PoE On: 260W Max. / PoE Off: 10W Max
* Surge Protection: Built-In
* Rack Mount: Yes
* Dimensions: 440 x 232 x 44mm
CCTV Mode:
CCTV mode allows a camera connection up to a 250m distance.This extension of distance reduces the Ethernet speed to 10Mbps.
