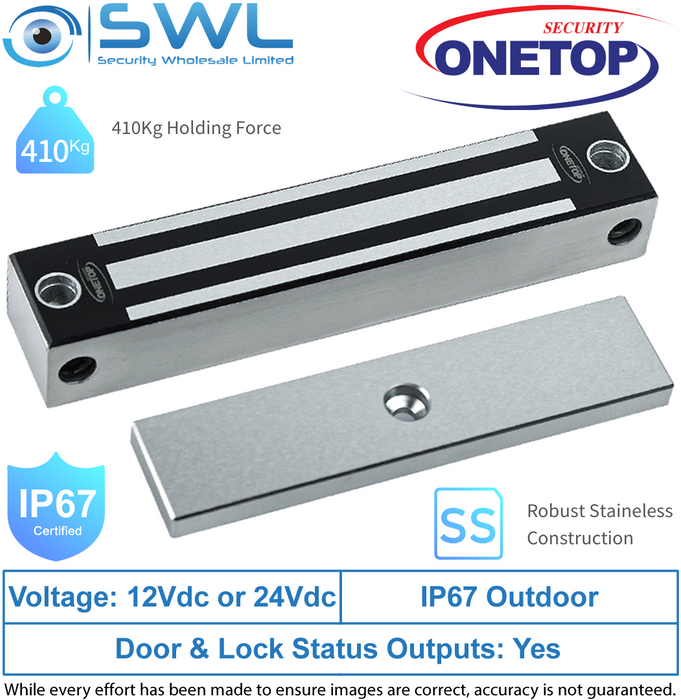

ONETOP EM4700FS DSS: Outdoor Mag Lock Face/Side Mount 410Kg, IP67, Monitored
Stock Code:
580091
POA
Warranty Details:
3 Years Return to Base
Description
The EM4700 series are dual operating 12/24VDC Fail-Safe weather resistant electromagnetic lock of stainless steel body with no residual magnetism having a holding force up to 410kg, for interior or exterior gates perimeter security with a built-in surge protection. It has Lock Status Sensor (LSS) and dual front or side fixing arrangement.
Features:
* Holding Force: Up to 410Kg* Surface Finish: Anodized Aluminium housing - Zinc plated for anti-corrosion
* Fail Safe: Power-to-lock
* Lock Status Sensor Monitoring, COM/NC/NO
* Door Status Sensor Monitoring, COM/NC/NO
* Dimensions: L 163.6 x W 31.5 x H 25.8mm
* Armature Plate: L 145 x W 30 x H 8.7mm
* Operating Voltage: 12VDC/ 24VDC +/- 10%
* Operating Current: 350mA @12VDC 180mA @ 24VDC
* Residual Magnetism: None
* Operating Temp: -10°C ~60°C
* Operating Humidity: 0~85% (non-condensing)
* Weight: 2.7Kg
* Weather Proof: IP67 solution
* Expected Usage Lifesapan: Over 1 million cycles
* Standards: CE, RoHs
* Compliance: EN 1634-1:2014/ BS EN 1634-1:2014
