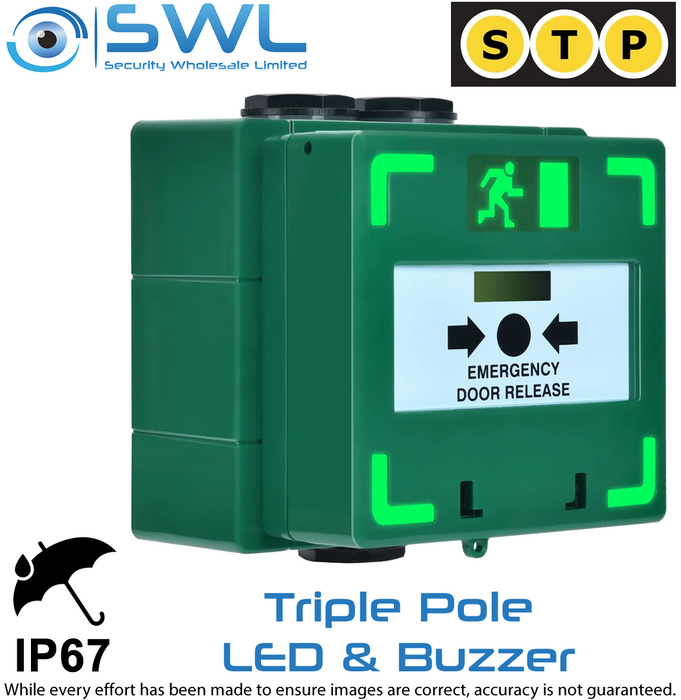

STP Green Weatherproof Triple Pole Break Glass: LED & Buzzer, Cover, Key, IP67
Stock Code:
56953
POA
Warranty Details:
1 Year Return to Base
Description
The outdoor STP-CP3-LSRC-WP is an IP67 sealed manual call point product. Enhanced environmental protection allows the unit to be installed in many external environments where water and dirt are likely to be present. The STP-CP3-LSRC-WP is a triple pole resettable breakglass designed for emergency use only. Upon activation of the resettable panel, power is permanently removed to the electronic locking device thus ensuring the door remains unlocked allowing free egress. The breakglass is equipped with visual and audible indicators ensuring re-assurance once the breakglass has been activated. The breakglass is supplied with a test key for periodical testing and a protective clear cover to assist with preventing accidental use.
Features:
* DC12V, 18mA (Standby by), 75mA (Operation)* DC24V, 11mA (Standby by), 41mA (Operation)
* Buzzer: Set as silent, interval or continuous wailing
* LED Indicator: Dual-colour. Green/ OFF, Red and Red indicator to set blinking ON
* Output: 3 x NO/ NC/ COM
* IP Rating: IP67
* Dimensions: H 94.5 x W 98.8 x D 79.1mm
* Protective Cover Included
* Re-Set Key included (56954 below): One-way fit, front of device - simple operation
* Weight: 450g
* 3 x IP68, 15mm (MX20 1.5) glands
* Temperature Range: -40 to 60 Degrees Celsius
