Akuvox R20K-2 2-wire SIP Intercom with Keypad and RF card reader
Stock Code:
45125
POA
Description
AV-R20K-2 Akuvox SIP 2Wire IP65 P button Intercom KP+RFID

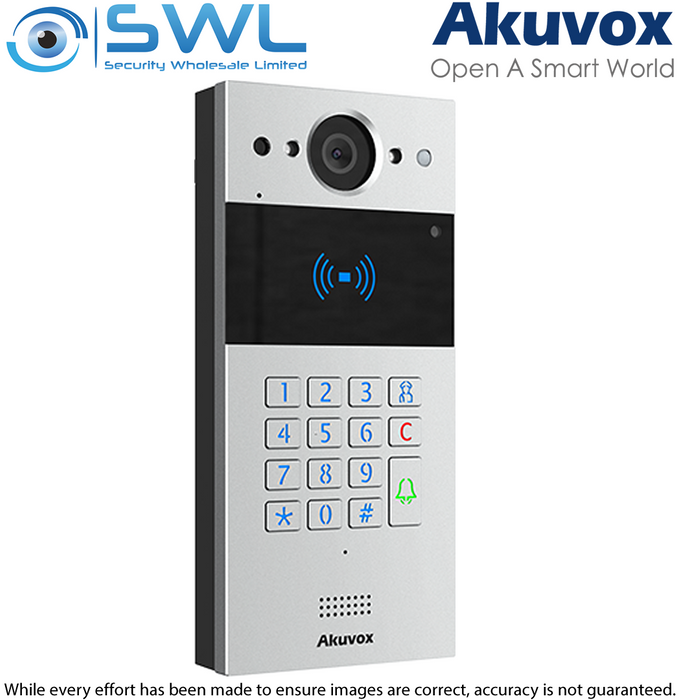

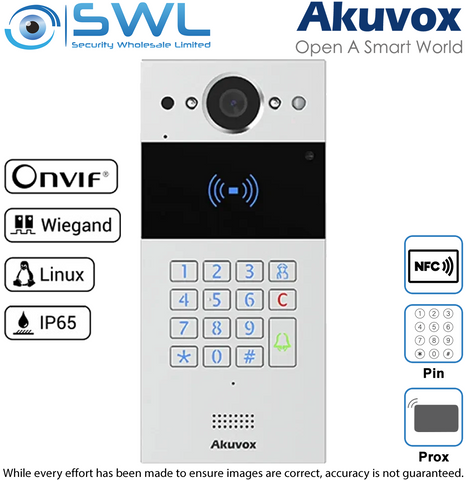

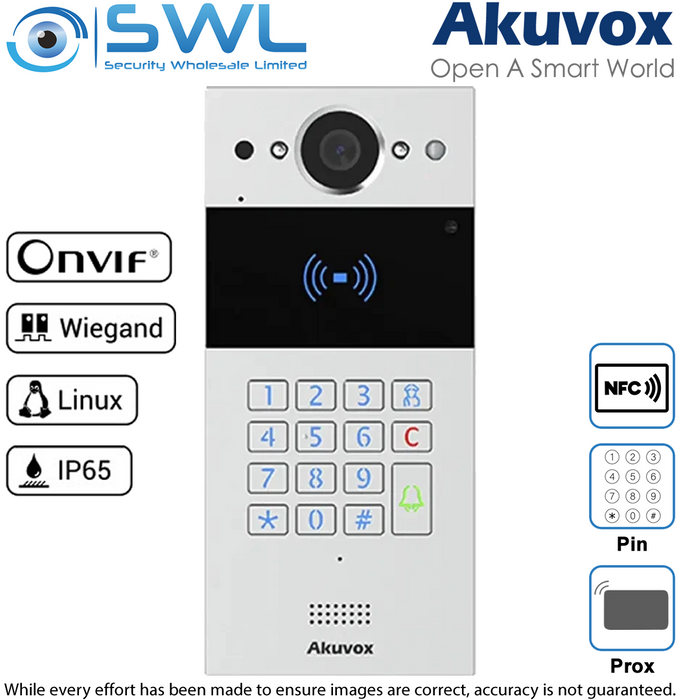

The Akuvox AV-R20K-2 Space-saving, highly compatible and compact 2-Wire SIP video door phone with a numeric keypad. It is typically used in apartment and office building retrofitting.
Features:
* Front panel: Aluminum alloy* Camera: 2M pixels, automatic lighting
* Keypad:Yes
* Wiegand port: Support
* RS485 port: Support
* RF card reader: 13.56MHz (with NFC) & 125kHz
* Relays out: 1
* Inputs: 1
* Microphone: -40dB
* Speaker: 4O / 3W

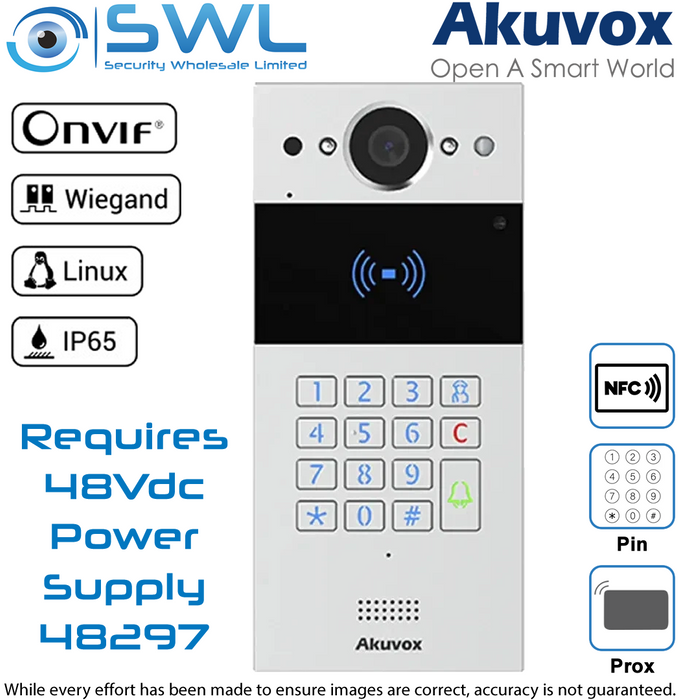

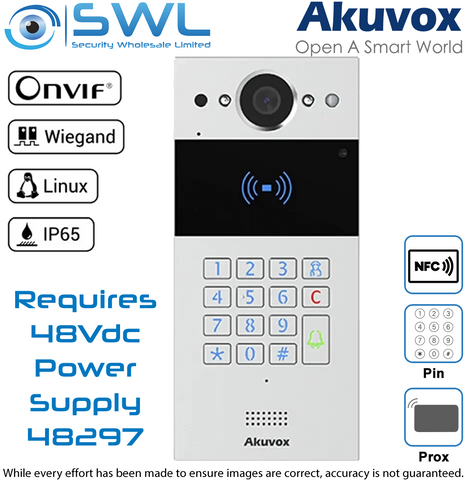

* Power supply:48VDC two-wire power supply
* Water-proof & Dust-proof: IP65
* Installation: Flush-mounted or Wall-mounted
* Flush-mounted DIM: 226x108x52mm
* Wall-mounted DIM: 185x85x29mm
* Working Temperature: -30°C ~ +60°C
* SIP v1 (RFC2543), SIP v2 (RFC3261)
* Broadband audio codec: G.722
* Echo Cancellation
* Voice Activation Detection
* Comfort Noise Generator
* Sensor: 1/2.7”, CMOS
* Video codec: H.264
* Video resolution: up to 1920x1080p
* Viewing angle: 110°(H) / 58°(V)
* High intensity IR LEDs for picture lighting during dark hours with internal light sensor
* Compatible to 3rd-Party-Video components, e.g. NVRs
* Camera permanently operational
* Auto-night mode with LED illumination
* Minimum illumination: 0.1LUX
* Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
* Web management portal
