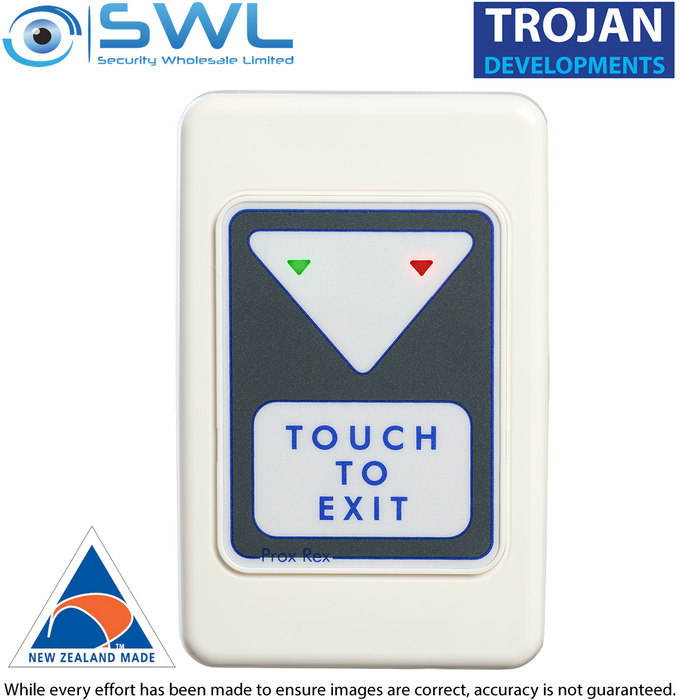

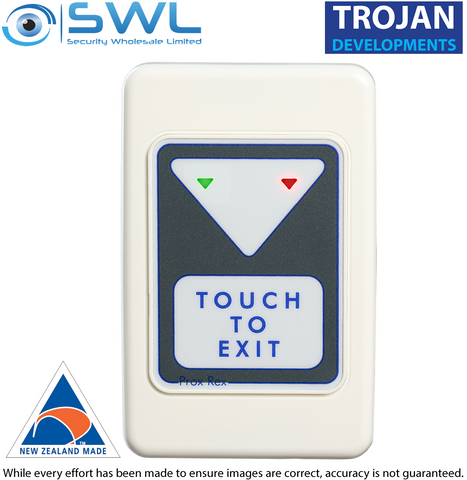

Trojan Prox Rex - Touch To Exit Unit - V10.2
Stock Code:
57296
POA
Description
This new v10.2 Prox Rex® (Touch to Exit) electronic switch is a low cost, touch sensitive switch unit designed for use with Access Control Systems and is an ideal replacement for conventional push buttons, door release buttons, call switches, etc.
Features:
* One touch of a finger to activate, making it ideal for fast and easy egress* Vandal-Resistant – all components are behind the plate.
* Perfect replacement for door release buttons that are in high usage areas.
* No moving parts.
* Ideal for areas where infection control is important
* Easy to clean and fade resistant
* Two LED indicators for visual confirmation: Red for heartbeat and Green for operated
* Built-in sounder to provide audible confirmation of operation
* Single gang profile fits standard electrical flush box
* Power requirements 9 to 16VDC - 50mA at 13.6 VDC
* 2 sets of clean N/O and N/C outputs
* The contacts are rated at 1A, 30 VDC
* The switch is fully self-calibrating
* The faceplate will not deteriorate over time and is easily cleaned
* C-Tick, RCM, RoHS Certified
1) Prox Rex supplied by SWL after 20/10/25 are upgraded to resolve a vulnerability.
2) Brand new upgraded v9.8 units, have a white ID sticker on the bottom left of the circuit board. MF
Weatherproof Accessory:
* Clear Polycarb Protective Cover: WEC140 57250
