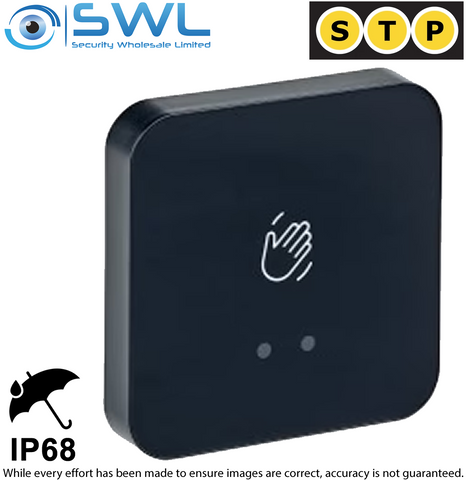

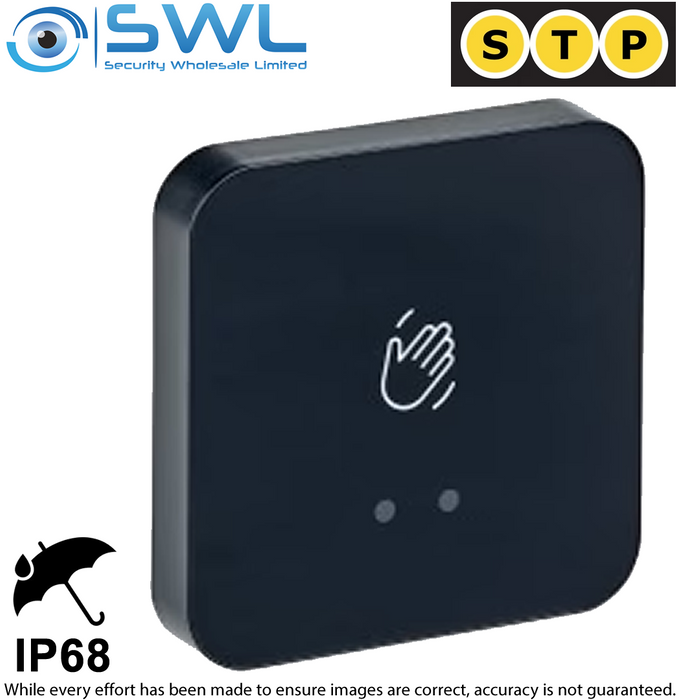

STP External Touchless Exit Device IP68 - BLACK

Stock Code:
56770
POA

Description

This no touch button has a touchless proximity switch activated by close proximity of the hand. No need to touch making it ideal for clean environments. Adjustable timer and proximity range.

Features:

* Double colour LED standby blue, green when activated
* Infrared proximity sensor
* Black PC case and ABS face plate
* Adjustable proximity range 3cm to 15cm (+/- 25%)
* Time delay: 0-30 seconds (adjustable)
* Ingress Protection: IP68. Max dust protection. The PCB is 'fully-potted' by a hardened protective resin. **
* Surface Mount
* Voltage: 12-24V DC
* Current draw: 45mA max
* Relay: COM/NO/NC, Touchless
* Operating temperature: -20°C to +55°C
* Dimensions: 86mm x 86mm x 14mm

** The electronic assembly has been placed in a mold and the chosen compound poured in, filling the space and hardening to create a solid, protective casing.
