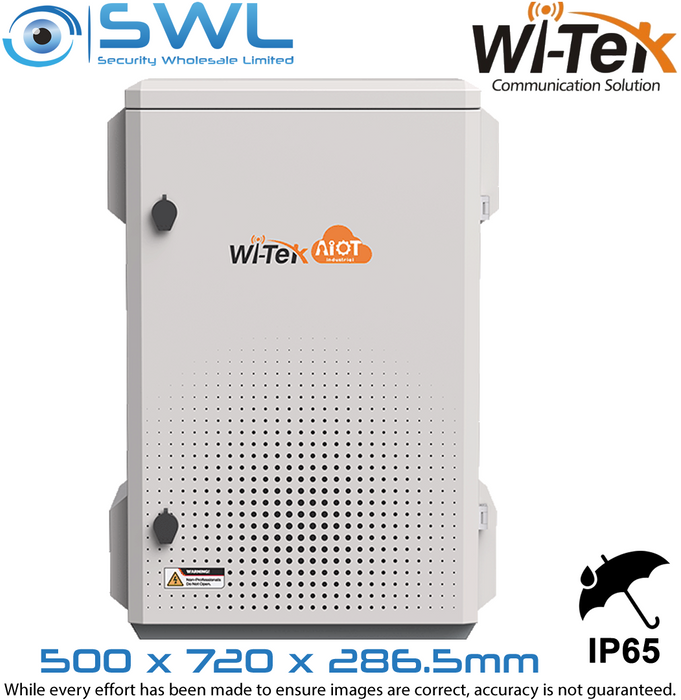

Wi-Tek WI-IOTBOX03 V3: O/D Cabinet 500x 720x 286.5mm, Fan, Tamper, IP65, IK10
Stock Code:
47878
POA
Warranty Details:
1 Year Return to Base
Description
Wi-Tek’s Smart IoT Box is an all-weather outdoor electrical equipment protection box. It has waterproof, dustproof, heat dissipation, anti-ultraviolet, anti-theft, anti-rust, acid and alkali corrosion, anti-electromagnetic interference (anti-lightning EMP), modular structure design in the box. Electrical equipment can be installed vertically or horizontally according to the situation. Designed to accommodate Wi-Tek's Industrial Switch, 4G Cat6 LTE CPE, Solar UPS PoE Switch, Industrial IoT M2M Gateway, and Mesh AP devices to support your CCTV/WLAN Wi-Fi Coverage/Industrial IoT Application requirements. Flexible modular installation is designed to decrease your project deployment cost.
Specification:
* Overall Dimensions: W500x H720x D286.5mm* Inner Dimensions: W450x H650x D260mm
* Weight: 17.1Kg
* Thickness: 1.2mm
* Material: SUS430 Stainless Steel
* Colour: Light Grey + Grey
* Surface Treatment: Electrostatic Spraying
* Installation Type: Pole/ Wall/ Floor-mounted
* Detachable Side Plate: 2 (1 on each side panel)
* M25 Waterproof Connector: 2 (1 on each side inner panel)
* Aluminum Alloy Chute: 2 (on the rear panel)
* Bottom Cable Entry: 1 (at the bottom)
* Air Intake Holes/
* Water Outlet Holes: 4 (at the bottom, with rubber plugs)
* Microswitch :1 (on the upper right inside)
* Fan: 1 (on the top inner panel)
* Keys: Comes with 2x Keys (ask for details)
* Ingress/ Vandal Protection: IP65, IK10
* Not designed for coastal areas
