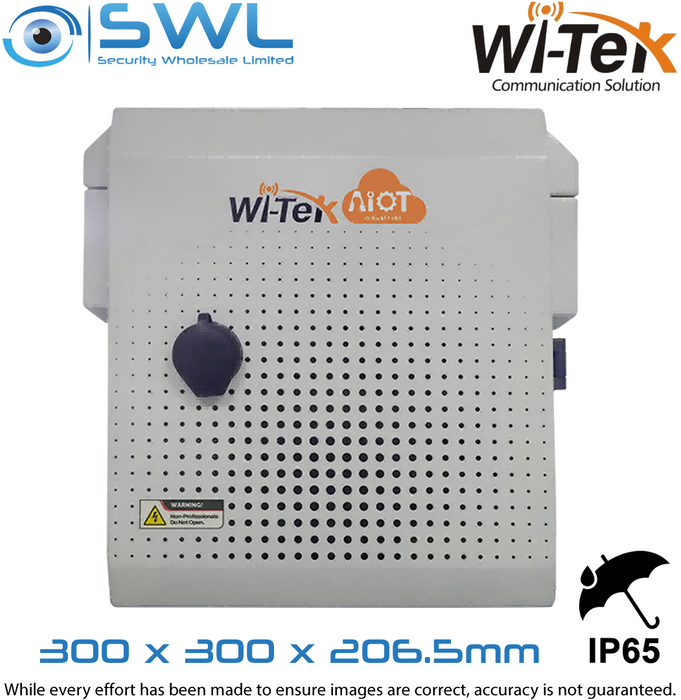

Wi-Tek WI-IOTBOXMINI: O/D Cabinet 300x 300x 206.5mm, Fan, Tamper, IP65, IK10
Stock Code:
47870
POA
Description
Wi-Tek’s Smart IoT Box is an all-weather outdoor electrical equipment protection box. It has waterproof, dustproof, heat dissipation, anti-ultraviolet, anti-theft, anti-rust, acid and alkali corrosion, anti-electromagnetic interference (anti-lightning EMP), modular structure design in the box. Electrical equipment can be installed vertically or horizontally according to the situation. Designed to accommodate Wi-Tek's Industrial Switch,4G Cat6 LTE CPE, Solar UPS PoE Switch, Industrial IoT M2M Gateway, and Mesh AP devices to support your CCTV/WLAN Wi-Fi Coverage/Industrial IoT Application requirements. Flexible modular installation is designed to decrease your project deployment cost.
Specifications:
* Overall Dimensions: W300x H300x D206.5mm* Inner Dimensions: W250x H250x D180mm
* Weight: 5.5Kg
* Thickness:1.2mm
* Material: SUS430 Stainless Steel
* Colour: Light Grey + Grey
* Surface Treatment: Electrostatic Spraying
* Installation Type: Pole/ Wall/ Floor mounted
* Detachable Side Plate: 2 (1 on each side panel)
* M25 Waterproof Connector: 2 (1 on each side inner panel)
* Aluminum Alloy Chute: 2 (on the rear panel)
* Bottom Cable Entry: 1 (at the bottom)
* Air Intake Holes/
* Water Outlet Holes: 4 (at the bottom, with rubber plugs)
* Microswitch: 1 (on the upper right inside)
* Fan: 1 (on the top inner panel)
* Ingress / Vandal Protection: IP65, IK10
