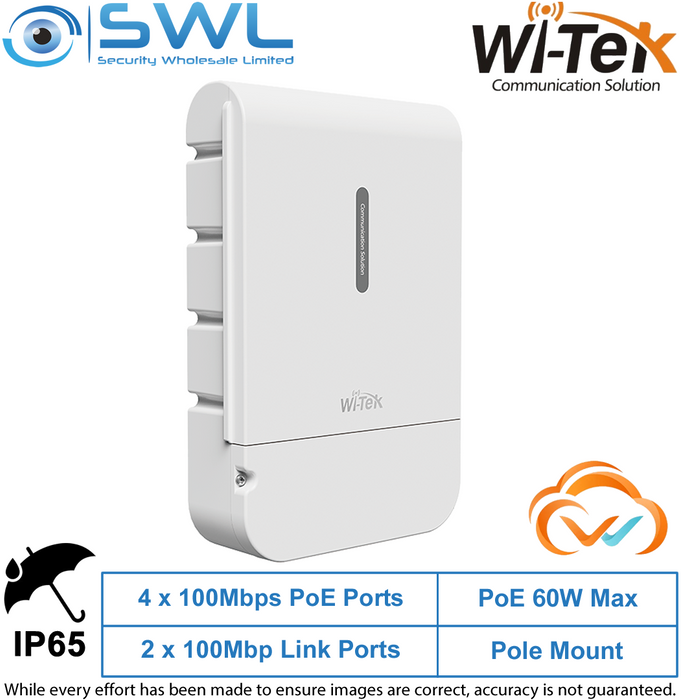

Wi-Tek WI-PCES206-O:4x 100Mbps PoE Ports+ 2x 100Mbps RJ45, 60W O/D Switch IP65
Stock Code:
48250
POA
Description
Wi-Tek's Cloud Easy Smart Outdoor PoE Switches are designed to address the unique challenges of variable weather environments. This Outdoor PoE Switch, is a cost-effective, all-in-one solution for your outdoor CCTV systems with 4 PoE output ports. This switch supports Cloud Managrment to remotely manage your devices in Wi-tek's Cloud Platform/mobile app, providing you with intelligent, simple and easy-to-maintain management measures. Users can view the network status, modify the configuration and troubleshoot from base.
Features:
* Supports 250m Extend mode, Port VLAN mode, PD Alive mode* Supports Wi-Tek Cloud Management for real-time monitoring and remote configuration
* Supports alarm notifications, easy to maintain in real-time
* Supports ONVIF protocol to automatically identify IP camera
* IP65 Weatherproof and dustproof enclosure design
Specifications:
* Downlink Ports: 4 x 100Mbps PoE Ports* Uplink Ports: 2 x 100Mbps RJ45 Ports,
* PoE Standard: Port 1-2: Hi-PoE 45W, Port 3-4: 802.3af/at 30W
* PoE Power: 60W Max total budget
* Standards & Protocols: IEEE 802.3af, IEEE 802.3at
* Switching Capacity: 1.2 Gbps
* Input Power: 100-240 VAC 50/ 60Hz
* Power Consumption: Idle, 2.7W. 100% Traffic Rate with PoE: 62.7W
* Fan Quantity: Fanless
* Dimensions: 314 x 210 x 89mm
* Installation: Wall-mount, pole-mount
* Ingress Rating: IP65
* Certification: CE, FCC, RoHS, UKCA, RCM
DIP Switch Button:
* 1. Extend: The transmission distance of PoE Ports can be up to 250m with 10Mbps
* 2. VLAN: Enable Port isolation, each PoE port just can send data to uplink port
* 3. PD Alive: All PoE ports enable PoE Alive function, which can detect and reboot the offline compliant PoE powered devices
