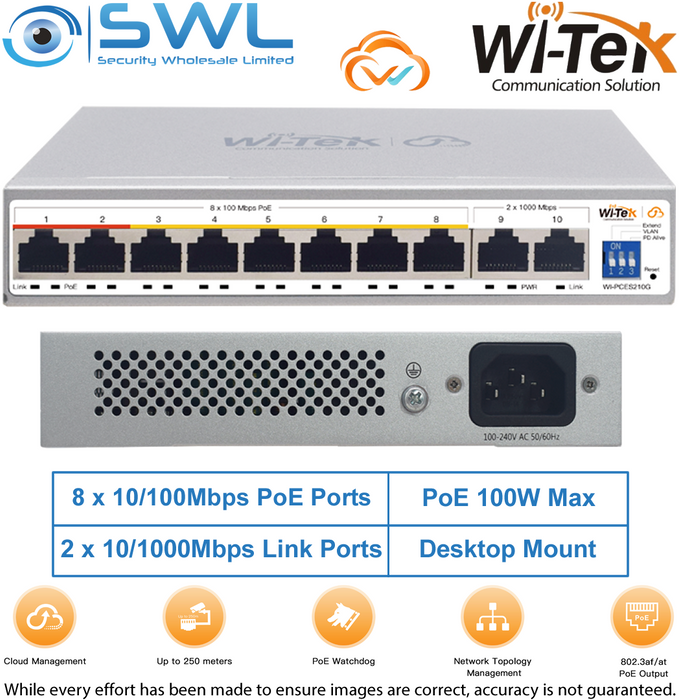

Wi-Tek WI-PCES210G: 8x 100Mbps PoE Ports + 2x 1000Mbps RJ45, 100W, Cloud
Stock Code:
48055
POA
Description
Wi-Tek's Cloud Easy Smart 250m PoE Switches provide 4/ 8/ 16/ 24 100Mbps PoE ports. Some PoE ports can deliver up to a 90W output, suitable for powering high-power devices and fulfill the demand for sufficient PoE power for HD IP surveillance. It offers an easy-to-use, reliable, intelligent power solution for CCTV networks. This series of switches supports Cloud Management to remotely manage your devices in Wi-Tek's Cloud Management platform/ Mobile App, providing you with intelligent, simple and easy-to-maintain management measures. Users can view the network status, modify configuration and troubleshoot anytime.
Features:
* Cloud Easy Smart 250m PoE switch* Supports Wi-Tek Cloud management, mobile APP remote maintenance
* Smart DIP Mode: Extend mode, VLAN mode, PD Alive mode
* Supports various real-time alarms, even novices can troubleshoot
* Supports ONVIF protocols to automatically identify IP cameras
V1 Specifications:
* Downlink Ports: 8 x 100Mbps PoE Ports* Uplink Ports: 2 x 10/100Mbps RJ45 Ports,
* PoE Standard: Port 1-2: Hi-PoE 45W, Port 3-8: 802.3af 30W
* PoE Power: 100W Max delivery budget
* Standards & Protocols: IEEE 802.3af/ at
* Switching Capacity: 5.6 Gbps
* Input Power: 100-240V AC 50/60Hz
* Power Consumption: Idle - 2.4W 100% Traffic Rate with PoE: 102.4W
* Fan Quantity: 1
* Installation: Wall mount, desktop
* Certification: CE, FCC, RoHS, UKCA, RCM
* Dimensions: 169 x 95 x 32mm
DIP Switch Button:
* 1. Extend: The transmission distance of PoE Port can be up to 250m with 10Mbps
* 2. VLAN: Enable Port isolation, each PoE port just can send data to uplink port
* 3. PD Alive: All PoE ports enable PoE Alive function, which can detect and reboot the offline compliant PoE powered devices
