Solar Kit: 400W (2 x 200W Panels) 1 x 160 Amp Battery, Brackets & Power Control
Stock Code:
52155
POA
Description
********** Ordered at request please check ETA **********
This solar kit boasts an excellent redundancy capability due to its 2 x 200W panel and 160AH/ LiFePo4 Battery. The large, high conversion, photovoltaic panel is designed to provide a stable charging ability, even in low light conditions.
Kit Includes:
2 x 200W Monocrystalline Solar Panel with high-strength aluminium mounting frame1 x 160AH LiFePO4 Rechargeable solar battery with built-in MPPT Controller in a weatherproof cabinet
1 x Camera mounting bracket
Features:
* CCTV Solar Power Supply 2 x 200W into 160AH Battery Solution* Solar panel: 2 * 200W Monocrystalline silicon solar panel, tempered glass.
* Solar panel dimensions per panel: 670mm L x 1380mm W x 30mm H
* Battery: 160AH 12.8V LiFePO4 Battery, Total: 2048WH
* Cabinet dimensions: MPPT Controller Cabinet 500mm x 400mm x 200mm
* Cabinet dimensions: Battery Cabinet 320mm x 170mm x 120mm
* Solar MPPT Controller with surge-protector / isolator
* Installation Brackets andCabinets for Solar Panel and Battery
* DC12V OUT
* IP65 rated
* Total solution weight 40Kg
* Other accessories: Battery Mount, Screws, DC Cable, etc
* Used for CCTV and general applications
* Suitable for pole-mount & wall-mount installations
This solution has clearly identified parts and terminals to assist in an efficient installation. Manual supplied.
To calculate the approximate discharge rate without any charge, please use the following calculation (this is approximation not exact):
Approximate Discharging Time = Battery Capacity * Battery Voltage * Battery Power Efficiency (estimated at about 95% or 0.95) / Device Watt
For Example:
2 x IP Camera, 1 x PoE Switch, 1 x Cloud Controller = 30W (Check product specifications for device power consumptions)
Approximate Discharging Time = 160A/h * 12v * 0.95 / 30W = 60
Approximate Discharging Time of 60 Hours
Please Note:
1. Due to the size, weight and nature* of the components, your order will need to be transported by a 'bulk' carrier. Prices vary. Please ask your Sales Rep or our AKL logistics team to provide you with a door-to-door freight price.2. *Large Lithium batteries are prohibited as 'dangerous goods' by most local courier services.

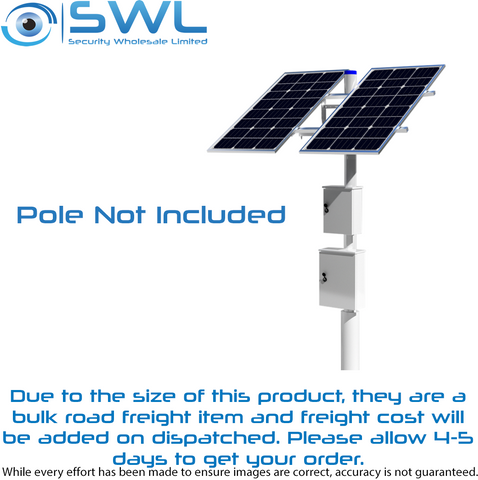

3. Image for illustration purpose only; excludes pole, camera/s and any wireless equipment.
** Cloud Controller For Solar Powered PoE Switch 48500
** 5 Port PoE Switch For Solar Solution 48505
