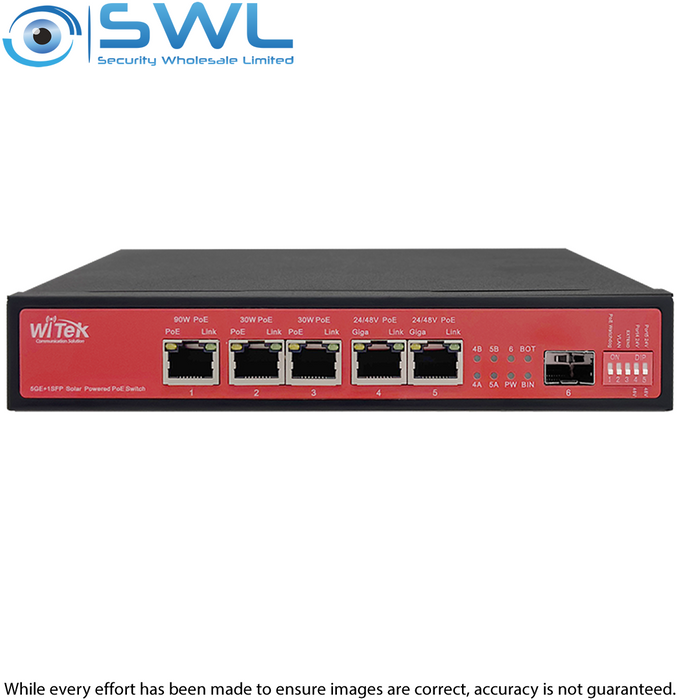

WI-PS306GF-UPS-15A(V2): Solar Powered 5 Port PoE Switch 120W For Solar Solution
Stock Code:
48505
POA
Description
Wi-Tek WI-PS306GF-UPS-15A(V2) Unmanaged Gigabit Network PoE Switch with 5* GbE PoE Ports + 1* SFP Slot – 12VDC/24VDC Solar Powered – Built-in MPPT Controller – 120W PoE Output
Features:
* 1 x 1000Mbps IEEE 802.3bt 90W PoE RJ45* 2 x 1000Mbps IEEE 802.3af/at 30W PoE RJ45
* 2 x 1000Mbps IEEE 802.3af/at 30W PoE or 24V passive 24W PoE RJ45
* 1 x 1000Mbps SFP
* 1 x RS-485 for WI-IOT100 to cloud management
* 2 x Photovoltaic input, 1* Battery charging & discharging
* 120W MAX budget for whole PoE switch - delivery capability per Port as below:
* 60W Max deliveryfor Port 1
* 30W Max delivery for each Port 2 & 3
* 30W Max delivery or 24W max @ 24V passive PoE for Ports 4-5.
* 15A Max for battery charging current
* Supports PoE watchdog, Port VLAN, Extend function
** Note – Use WI-IOT100 52500 with this switch for battery & solar output monitoring
