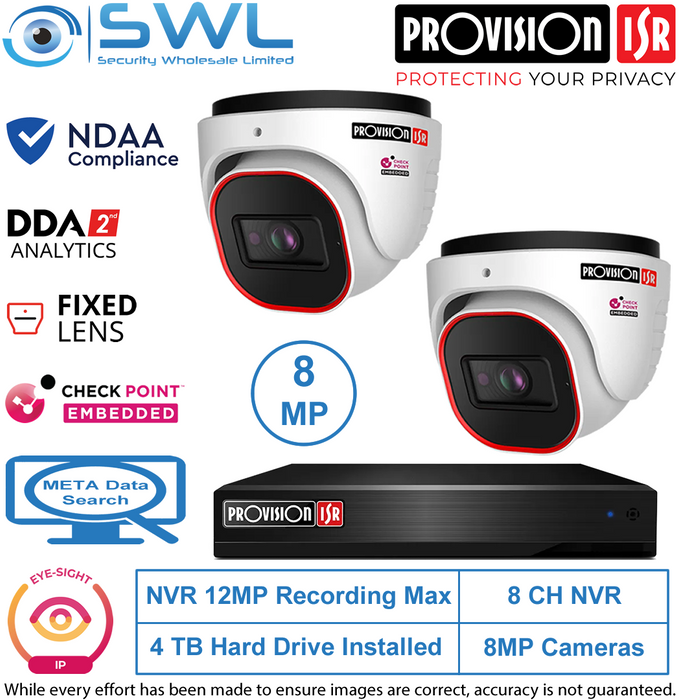

Provision-ISR 8CH NVR12 KIT: With 2x 8MP Eye-Sight Turrets 2.8-12mm 4Tb HDD
Stock Code:
33620
POA
Description
Kit Includes:
1 x Provision-ISR NVR12-8200PFAN 8CH NVR 335564 x Provision-ISR DI-380IPEN-MVF-V3: Eye-Sight 8MP Turret NDAA 33170
1 x WD Purple Hard Drive 3.5" 4Tb Installed - 3 Year Warranty 46075
NVR Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant NVR
* IP Video Inputs: 8
* Onboard PoE: 8 Ports 9W average. Max budget, 72W
* Bandwidth: Input/ Output both @ 64Mbps
* Recording: 8CH @ 5MP real time
* Max Playback: 1CH @ 5MP, 4CH D1
* Video Compression: H.265+ / H.265/ H.265S/ H.264
* Display Outputs: 1x HDMI 1920x1080, 1x VGA output
* Storage: 1x SATA HDD bay. 2Tb installed for you.
* Analytic Support: DDA1 & DD2. LPR Capture Only (Eye-Sight). See specification sheet.
* Search Mode: DDA Object, Smart Search, LPR, Time-Slice, Time, Event.
* Alarms: None. Add Provision-ISR IO-1606 USB Input & Output Module: 33501
* Ethernet Port: 1. Independent 100Mbps port
* USB: 2x Ports
* ONVIF Support: Full Device Support (Profiles T/G, ONVIF Version 20.12)
* Power Supply: 48VDC/ 2.5A
* APP Support: Provision CAM2 for iOS/ Android
* Dimensions: W255 x D220 x H45mm
Monitor & UPS Options:
* Provision-ISR 24" Ultra-Thin Monitor: 50008* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
Camera Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* NDAA: Compliant Camera
* Resolution: 1/2.8" CMOS (16:9) 8MP
* Lens / FOV: 2.8-12mm Motorised Lens with Auto Focus 96°- 32° (H)
* D(O)RI: See Lens information on specification sheet
* Video Format: H.265S/H.264S*, H.265+/H.264+/H.265/H.264/MJPEG**
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Image Orientation: Mirror/ Flip, Corridor Mode
* Min Illumination: 0.015lux( @F1.4, AGC On) 0 lux with IR on
* Max IR Distance: 40m, actual (3 High Power IR LEDs)
* Analytics DDA1: (Object Detection) Sterile Area, Line Crossing, Object Counting (Line)
* Analytics DDA1: Object Counting (Area), Face Detection (10 Faces a frame), Heat Map
* Analytics DDA2: (Advanced Object Classification) Age, gender, vehicle brand, colour
* Audio: Built-In Microphone + Audio Input + Audio Output
* SD Card: Event/Schedule Record (Up to 256GB) 46039
* ONVIF: Profiles T/ S/ G
* Power: DC12V/~910mA / PoE/~8.2W
* Ingress Rating: Water Proof, IP67. Metal camera.
* Dimensions: Ø113mm × 99.6mm
Camera Accessories:
* IP66 Back Box: PR-JB14IP66 34072* Wall Bracket: PR-WB-A 34078
* Pole Mount: PR-B50PB 34032 and PR-WB14 34081
* Ceiling Mount: PR-CB14 34080 and PR-B20EX extension sections 34085
