ONETOP EM5700 DSS/F: Environmentally Friendly 580Kg Mag Lock 12/24VDC
Description

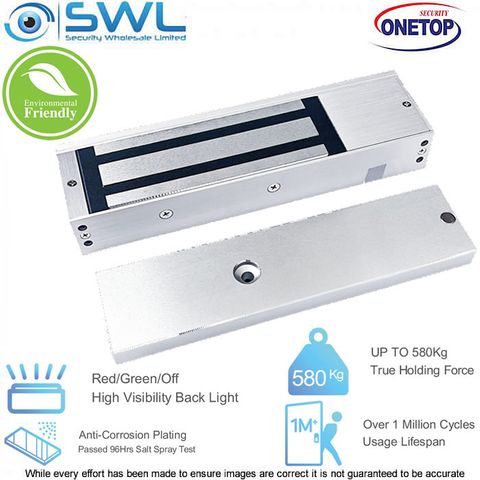

The EM5700 DSS/F single and double swing surface mount electromagnetic lock operates on 12 or 24 VDC setting on a highly visible LED backlight. It has both Lock status sensor (LSS) and Door status sensor (DSS). Electromagnetic lock & armature plate are quality plated to operate over a million operation that instantly release to unlock when powered OFF without any residual magnetism. This new design has been tested to be fire rated for 3 hours and product has been classified to be environmental friendly.
Features:
* Dimensions: (L) 268mm x (H) 73mm x (D) 41mm
* Holding Force 580Kg
* Operating Voltage: 12/24VDC ±10%
* Operating Current: 12VDC – 510mA or 24VDC – 270mA
* Surface Finish - Anodized Aluminum Housing, High Quality Plating for Anti-corrosion (96 Hrs Salt Spray Corrosion Tested)
* High Visibility Light Shows The Lock Status Red - Locked, Green Unlocked
* Lock Status: Output COM/NO/NC: Max 24VDC; Max 1A
* Door Status: Output COM/NO: Max 24VDC; Max 0.2A
* Operating Conditions: -10°C ~ 60°C, Humidity: 0 ~ 85% (non-condensing)
Environmentally Friendly Features:
* Non-epoxied potted electromagnet,* Recyclable metal to make it truly environmentally green friendly,
* Carbon neutral with everything recyclable,
* Electromagnets are 100% fire rated, nil plastic combustible materials
Compliance Standards
Complies to: EU RoHS Directive 2011/65/E and Living Building Challenge 4.0
ONETOP also supports these standards in the following models: EM3500 DSS/F, EM3500D DSS/F, EM5700 DSS/F.
Ask your Sales Representative for pricing and availability.
