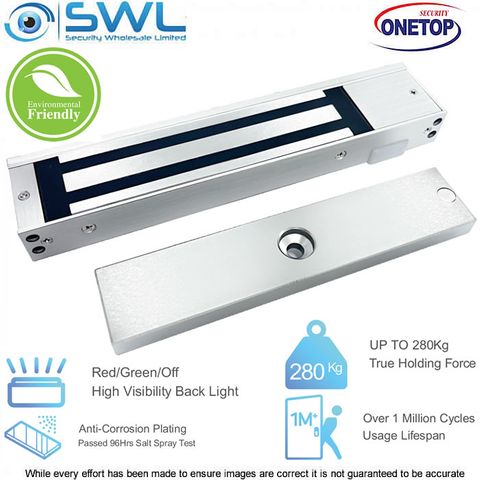

ONETOP EM3500 DSS/F: Environmentally Friendly 280Kg Mag Lock 12/24VDC
Stock Code:
58003
POA
Description
The EM3500 DSS/F series locks are dual operating 12/24VDC Fail-Safe electromagnetic locks. Encased in stainless steel, with highly quality plating for greater corrosion resistance and instant release to unlock when powered OFF, without any residual magnetism. The lock fixing arrangement can be on the front or side, for use on swing or sliding interior or exterior gate perimeter security with Lock status monitoring sensor and built-in surge protection. This new design has been tested to be fire tested and rated for 3 hours and has been classified as environmentally friendly.
Features:
* Surface Finish - Anodized Aluminum Housing, High Quality Plating for Anti-corrosion (96 Hrs Salt Spray Corrosion Tested)* Holding Force: 280Kg
* High Visibility Light Shows The Lock Status Red - Locked, Green Unlocked
* Lock Status: Output COM/NO/NC: Max 24VDC; Max 1A
* Door Status: Output COM/NO: Max 24VDC; Max 0.2A
* Operating Conditions: -10°C ~ 60°C, Humidity: 0 ~ 85% (non-condensing)
* Operating Voltage: 12/24VDC ±10%
* Operating Current: 12VDC – 510mA or 24VDC – 270mA
Environmentally Friendly Features:
* Non-epoxied potted electromagnet,* Recyclable metal to make it truly environmentally green friendly,
* Carbon neutral with everything recyclable,
* Electromagnets are 100% fire rated, nil plastic combustible materials
Compliance Standards
Complies to: EU RoHS Directive 2011/65/E and Living Building Challenge 4.0
ONETOP also supports these standards in the following models: EM3500 DSS/F, EM3500D DSS/F, EM5700 DSS/F.
Ask your Sales Representative for pricing and availability.
