Solar Kit: 1x 200W Panel, 1x 100 Ah Battery, Brackets & Power Control ,12VDC Out
Stock Code:
52150
POA
Description
This solar kit boasts an excellent redundancy capability due to its 200W panel and 100 Ah LiFePo4 Battery. The large, high conversion photovoltaic panel is designed to provide a stable charging ability, even in low light conditions.
* Used for CCTV and general applications
* Suitable for pole-mount & wall-mount installations
Kit Includes:
1 x 200W Monocrystalline Solar Panel with high-strength aluminium mounting frame1 x 100AH LiFePO4 Rechargeable solar battery with built-in MPPT Controller in a weatherproof cabinet
1 x Camera mounting bracket
CCTV Solar Power Supply 200W into 100 Ah Battery Solution
Specifications:
* Solar MPPT Controller with surge-protector / isolator* Power Delivery: DC12V OUT. Comes with 4-way DC splitter cable
* Solar Panel: 1 x 200W Monocrystalline Silicon solar panel, tempered glass
* Solar Panel Dimensions: L 670 x W 1380 x H 30mm
* Battery: 100 Ah 12.8V LiFePO4 Battery, total: 1280 Wh
* Cabinet Dimensions: 500x 400 x 200mm
* Installation: Panel Bracket, Cabinet for Solar Panel and Battery
* Ingress Rating: IP65
* Total Solution Weight: 40Kg
* Other accessories: Battery Mount, Screws, DC Cable, etc
This solution has clearly identified parts and terminals to assist in an efficient installation. Manual supplied.
To calculate the approximate discharge rate without any charge, please use the following calculation (this is approximation not exact):
Approximate Discharging Time = Battery Capacity * Battery Voltage * Battery Power Efficiency (estimated at about 95% or 0.95) / Device Watts
For Example:
2 x IP Camera, 1 x PoE Switch, 1 x Cloud Controller = 30W (Check product specifications for device power consumptions)
Approximate Discharging Time = 100 Ah * 12v * 0.95 / 30W = 38. Approximate Discharging Time of 38 Hours.
Please Note:
1. Due to the size, weight and nature* of the components, your order will need to be transported by a 'bulk' carrier. Prices vary. Please ask your Sales Rep or our AKL logistics team to provide you with a door-to-door freight price.2. *Large Lithium batteries are prohibited as 'dangerous goods' by most local courier services.

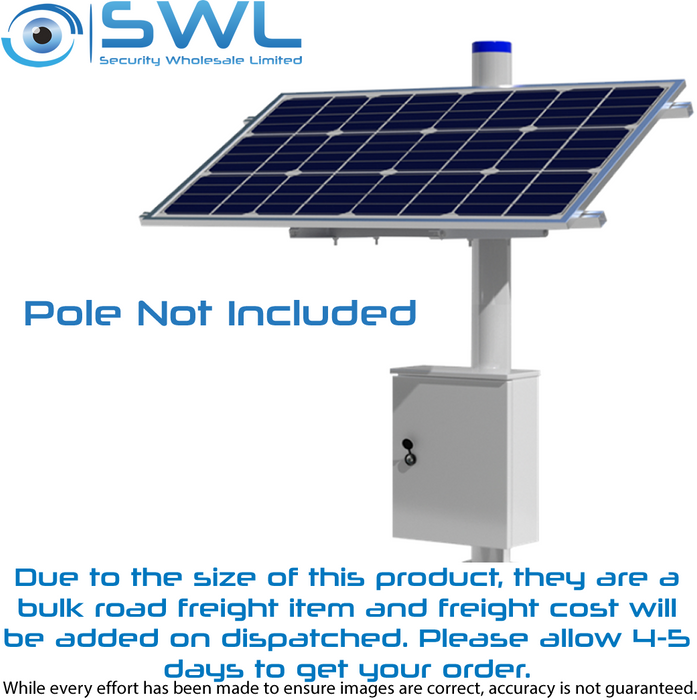

3. Image for illustration purpose only; excludes pole, camera/s and any wireless equipment.
