Description

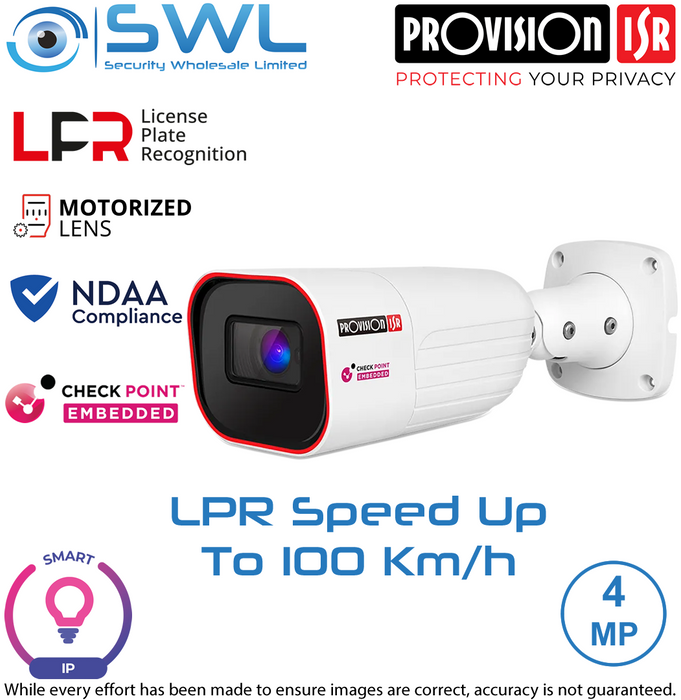

Provision-ISR I6-240LPR-MVF1 LPR cameras include an advanced image-processing technology. Equipped with a 2.8-12mm motorised lens, this LPR 4MP camera is designed to capture international license plate digits and letters. The camera captures license plates in real-time, then generates appropriate actions such as opening a gate or sending an alert. Where an appropriate NVR (see below) is used, this will automatically create a searchable database. Provision-ISR's LPR cameras' most common application is gate automation and vehicle/ street monitoring. They are an approved solution for NZ 'Safer Cities' initiatives. Provision-ISR's CAM2 App allows for licence plates to be added manually in real time, as well as searching for existing plates and footage in the same immediate way.
Features:
* Embedded Cyber Protection - Quantum Iot Nano agent by Check Point™* Resolution: 1/2.8" CMOS (16:9) 4MP
* Lens / FOV: 2.8-12mm Motorised Lens with Auto-Focus (110°-48°)
* Image Enhancement: True WDR (120dB), BLC, HLC, ROI
* Video Format: H.265/H.264 Compression
* Max IR Distance: 60m (4 IR LED Arrays)
* Analytic Features: LPR - Vehicle Speed of 0-100 Kmh
* Recognition Distance: 3-8m
* LPR Detection Speed: 0-100 Km//h
* Audio: Audio In/ Out
* Alarm: Alarm In/ Out (on camera, dry contacts for local connection)
* Storage: Micro SD Card up to 128GB (not supplied)
* ONVIF: Profiles G/ S/ M
* Power: DC 12V /~ 950mA /PoE/ 10.5W
* Ingress Rating: Water Proof: IP67. Metal camera and knuckle mount.
* Dimensions: 271.8 x 92.4 x 79.4mm
* NDAA: Compliant Camera
Useful Links:
Camera Accessories:
* IP66 Back Box: PR-JB14IP66 34072* Pole Mount: PR-B50PB 34032
Requires NVR Supporting LPR:
* Provision-ISR NVR8-4100PN-V2: 4CH 8MP NVR 33506* Provision-ISR NVR8-8200N-V2: 8CH NVR NO PoE 33554
* Provision-ISR NVR12-8200PFAN: 8CH NVR, 8xPoE 33556
* Provision-ISR NVR12-16400PFAN(1U): 16CH 16xPoE 33561
* Provision-ISR NVR12-32800FN-16P: 32CH 16x PoE 33563
* Provision-ISR NVR12-32800RFAN: 32CH No PoE 33565
* Provision-ISR NVR16-641600RFAN(2U): 64CH No PoE 33571
* Provision-ISR NVR8-128RT(3U): 128CH No PoE 33578
