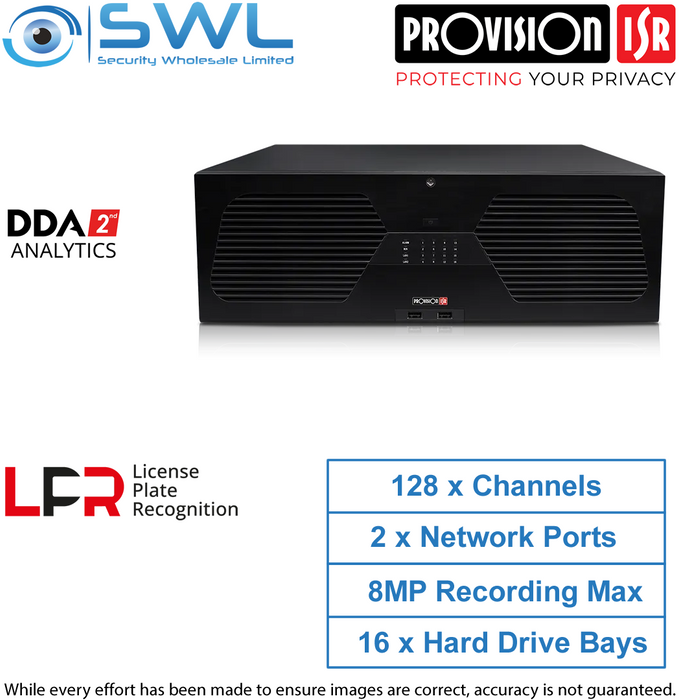

Provision-ISR NVR8-128RT(3U) 128CH 4K NVR No PoE. 2x NIC 16x HDD. No HDD Incl.
Description
Provision-ISR NVR8-128RT(3U) is an easy-to-install solution suitable for big-sized installations (up to 128 channels). The device features 8 alarm inputs + 4 alarm outputs and provides you with everything you need for a trouble-free CCTV project. All hardware components, including the Raid, are validated to meet the demands for reliable high-defnition surveillance.
Key Features:
* IP Video Inputs - 128Ch Over Network
* Onboard PoE - None, network switches required
* Max Input / Output - 384Mbps / 384Mbps
* Recording - 128CH 8MP Real-Time
* Max Decoding - 1Ch - 8MP ; 4Ch - 2x8MP + 2x5MP ; 9/16Ch - 1MP ; 32Ch - 20x1MP + 12xD1 ; 64Ch - D1
* Video Compression - H.265 / H.265+ / H.265S / H.264
* Display Outputs - HDMI1 (4K 30/60Hz, 1080P1280x1024), HDMI2 + VGA (1280x1024, 1080P
* Storage - 16x HDD bays, max capacity 8Tb each (not included)
* RAID - 0/ 1/ 5/ 6/ 10 supported
* Ethernet Port - 2x NIC 1000Mbps
* Analytic Support - DDA, LPR & Fish-Eye Support (Camera dependent)
- Download the Provision-ISR How to Setup Analytics from the NVR Guide HERE
* Alarm Input / Output - 8CH input, 4CH output
* Audio Input / Output - 1CH in / out depending on camera input/ output
* Power - AC100-240V
* W 440x D 485x H 148mm
* APP Support - Provision CAM2 for iOS/ Android
- Download the Provision-ISR CAM2 Mobile App Guide HERE
Storage & UPS Options
* 4Tb 46075
* 6Tb 460751
* 8Tb 460752 Max
* EATON 5E UPS 650VA/360W, 2x NZ OUTLETS 13070
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
For full specification and capabilities please download .pdf below.
