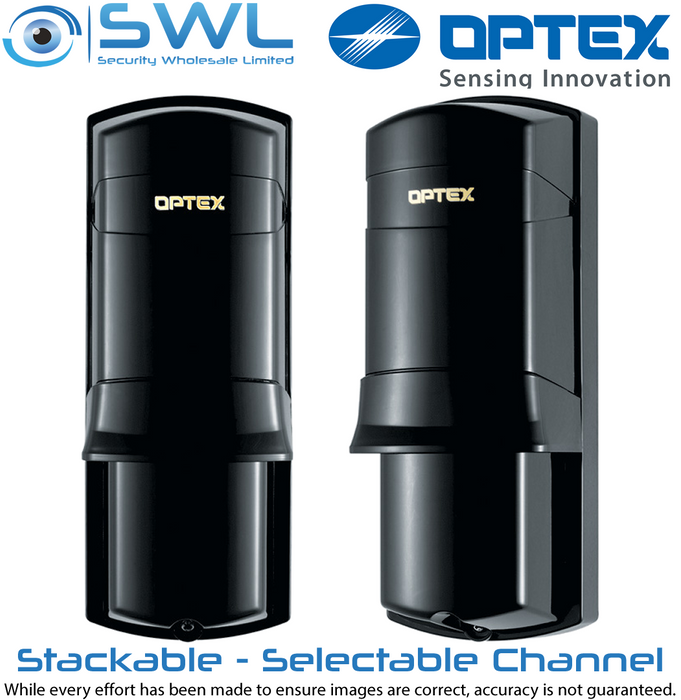

Optex AX-200TF: Weatherproof Beam Detectors,Selectable Channel, IP65, PAIR - 60m
Stock Code:
28025
POA
Description
AX-200TF short-range photoelectric detector is compact in design with an IP65 highly durable structure. Rubber packing is used for all conceivable points where water, dust or bugs may penetrate, such as wiring holes, wire ports and the outer chassis. Preventing these factors helps deliver performance with higher reliability in severe outdoor environmental condition. In addition, the length between the upper and lower optics, and the width of the optics are ideally engineered to produce the most intelligent detection pattern which reduces false alarms by detecting human intruders only.
Features:
* Lightning and surge protection* Anti-frost hood cover
* 99% beam blocking stability
* A.G.C circuit
* Adjustable beam interruption time
Specifications:
* Max Beam Distance: 60m* Ideal Mounting Height: 0.7-1.0m
* Selectable Beam Frequency: 4 Channels
* Alarm Output: N.C. 28V DC, 0.2A max.
* Alignment Angle: ± 90° Horizontal, ± 5° Vertical
* Power Supply: 10.5-28V DC
* Tamper: Opens when front cover is open
* Mounting: Wall & Pole Mount
* Max Pole Diameter: Ø32- Ø48mm @ about .6m
* Weight: 700g
* Ingress Rating: IP65 (EN 00529)
* Dimensions: 65(W) x 170(H) x 69.5(D) mm
See brochure and manual below.
