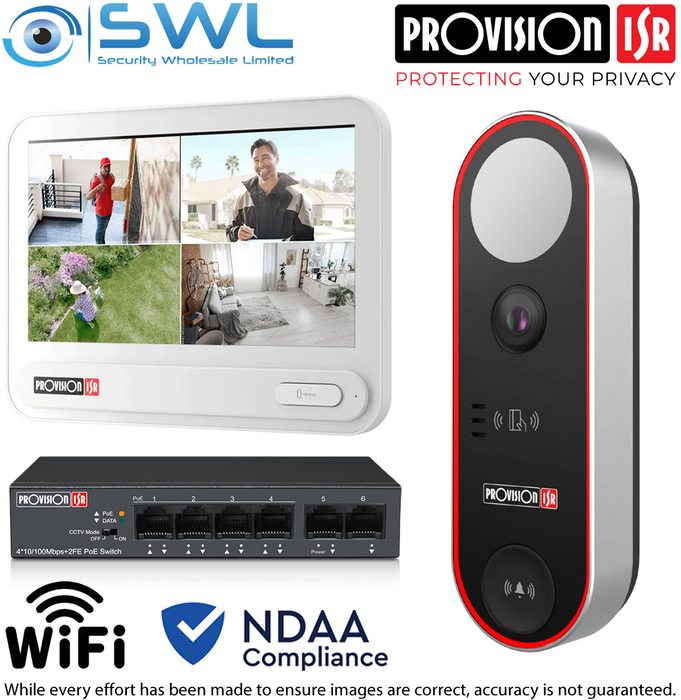

Provision-ISR Door Bell Kit: 1x Door Bell, 1x 4 Port PoE Switch, 1x 7" Monitor
Stock Code:
33433
POA
Description
Kit Includes:
1 x 33434 Provision-ISR DB-320WIPN 2MP Doorbell Camera, IR & White Light1 x 33442 Provision-ISR MON-TCH7: Intercom Indoor Station: 7" Touch Screen, NDAA
1 x 34300 Provision-ISR PoES-0460C+2I-V2 : 4 x 10/100 PoE + 2 x 10/100 Link 60W
Intercom Features:
* NDAA: Compliant Solution* Sensor: 1/2.8" CMOS (16:9)
* Resolution: 1920 × 1080 25/30FPS (2MP)
* Lens: 2.3mm - 139° (H)
* Day & Night: True Day & Night – ICR
* Illumination: 3m (2 IR LEDs) + 1m (1 White LED)
* Image Enhancement: Digital WDR, BLC, HLC, ROI
* Compression: H.265 / H.264 / H.265+ / H.264+ / MJPEG (Substream only)
* Analytics: 2D Face Detection, Person Detection
* SD Card: Event/ Schedule Record (Up to 256Gb) 46039
* Audio: Built-in Microphone & Speaker
* ONVIF: Profiles T/ S/ G
* WiFi Support: 2.4G ONLY
* Access Control 1: Door Lock Support
• Access Control 2: Door Sensor Support
• Physical Access: Open Door Button
• Built-in RFID Reader: MIFARE 13.56 Mhz Up to 3000 Keyfobs supported
• Power: DC12V/~500mA / PoE/~5.4W
* Ingress Rating: Water Proof, IP65
* Dimensions: 150× 50× 29.8mm
Monitor Features:
NDAA: Compliant Monitor* Screen Size: 7" IPS Touch Screen
* Max. resolution: 1024 x 600
* Brightness: 300cd/m2
* Compression: H.265+ / H.265 / H.264 / MJPEG
* Do-Not-Disturb: All day, Timing, Off
* Video-On-Screen-Controls: Lock 1, Lock 2, Talk, Hear, Record Video, Snapshot, View 1,View 4, switch cameras.
* SD Card: Manual Record up to 256Gb 46039
* IPC Additions: 8CH inputs
* Wireless Protocol: 802.11b/g/n (2.4Ghz ONLY)
* 2-Way Audio: Built-in Microphone & Speaker
* ONVIF: Support
* Power: DC12V/~200mA / PoE/~6W
* Dimensions: 180.6 x 135.6 x 26.8mm
Switch Features:
* Built-in Power Supply - Mains IEC Lead Supplied* Downlink: 4x 10/100Mbps RJ45 port
* Uplink: 2x 10/100Mbps port
* PoE Power: 60W total, 32W port maxium
* Backbone Bandwidth: 1.2Gbps
* Complies With IEEE802.3af/at Power Over Ethernet
* Built-in Surge Protection
* Switch Dimensions: 140x 76.7x 28mm
* Desk Top Mount
* CCTV mode - transmission distance is extended up to 250m (limited to 10Mbps)
