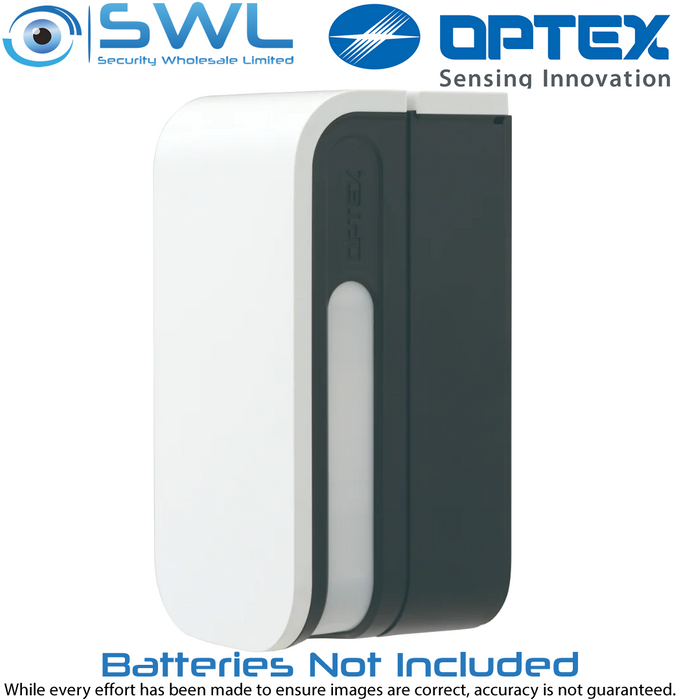

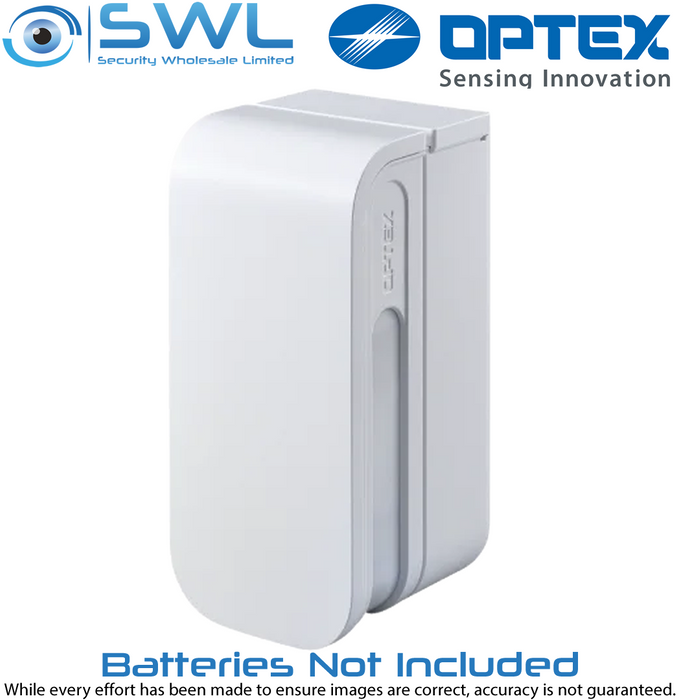

Optex OPT-BXS-R: WIRELESS Outdoor Passive Infrared Detector Up to 24m
Stock Code:
28009W
POA
Warranty Details:
1 Year Return to Base
Description
The BX Shield is a series of curtain outdoor motion sensors with up to 12m detection range on each side. Ideal to detect people in the immediate boundary of your home or office building, the outdoor curtain detectors feature four PIRs, two on each side. The left and right detection area can be set up completely independently from each other. The BXS-R is the Wireless bi-colour model.
Features:
* WIRELESS curtain PIR up to 12m per side* Completely independent detection setting per side
* Versatile and easy-to-install design
* Not affected by environment or small animals
Specifications:
* Detection Method: Passive Infra Red* Coverage: 12m each side, with 2 detection zones each side
* Ideal Mounting Height: 0.8-1.2m (1.0m ideal)
* PIR Distance Settings: 2.5m, 3.5m, 6m, 8m, 12m
* Detection Angle: Up to 3° away from wall
* Batteries: CR123A, CR2 & AA
* Alarm Output (L & R): 28VDC 0.1 A max. Individual; Right or General, N.O. or N.C.
* Tamper: YES
* Ingress Rating: IP55
* Mounting: Wall or Pole. Indoor/ outdoor
* Dimensions: 92.8(W) x 199.7(H) x 98.7(D)
*** Optional Battery Pack to Extend Battery Life & Power Transmitter 28009B ***
See brochure and installation manual below.
