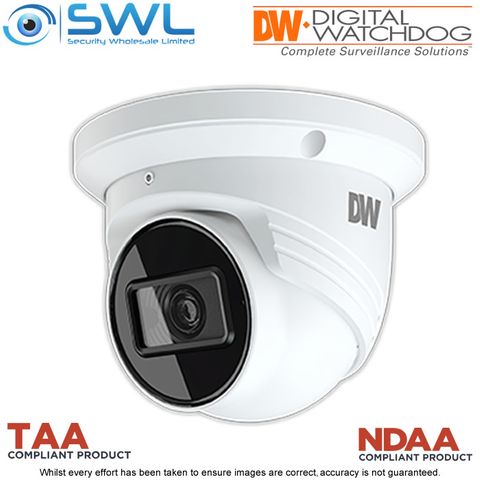

DW: DWC-MT95Wi28TW MEGApix® Ai 5MP Turret WDR IR30m IP67 IK10 2.8mm
Description
This MEGApix® Ai Turret is NDAA compliant and delivers crystal-clear images at 5MP resolution and real-time 30fps. The camera features a 2.8mm fixed lens and a 360° camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix Ai cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
* Sensor/ 2.7" CMOS. 5MP @ 30fps
* Lens / FOV - 2.8mm, 98.5° Horizontal Field of View
* Video Compression - H.264, H.265 & MJPEG
* Wide Dynamic Range - True WDR 120dB
* Min Illumination - 0.00 lux (B/W), 0.02 lux (colour)
* Max IR Distance - 30m, Smart IR
* Ai Analytics - Object classiification,Line Crossing, Intrusion, Video Tamper, Video Blur
* Audio Input - 1 built-in Mic and 1 input (1.0Vms, 3K ohm)
* Audio Compression - G.711
* Alarms - 1 input,1 output
* Interoperability - DWSpectrum, IPVMS, Exacqvision Technologies, Milestone Systems
* Compatibility - ONVIF Profile S
* Storage - Micro SD/SDHC/SDXC class 10 card up to 256GB (card not included)
* Dimensions - 118.6 x 91mm
* Power - PoE Max 7W IR on, 12VDC
* Ingress Rating - IP67. IK10 Aluminium casing
* Compliance - FCC, CE, ROHS, NDAA, ONVIF, UL
Brackets
* Junction Box: DWC-MT9JUNC 61050
* Ceiling Mount: DWC-MT9CMJ 61060
* Wall Mount: DWC-MTTWM 61030
See specification sheet and manual below for further information.
