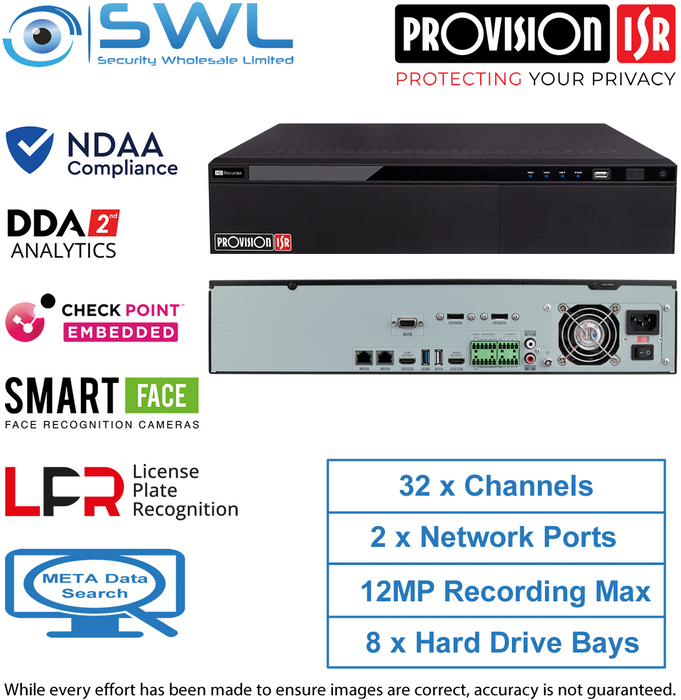

Provision-ISR NVR12-32800RFAN(2U): 32CH NVR No PoE, LPR, 2 x NIC, 8 x HDD Bays
Stock Code:
33565
POA
Description
Provision-ISR NVR12-32800RFAN(2U) is a high-performance NVR without embedded PoE for a high degree of installation flexibility. This device features 16 alarm inputs + 4 alarm outputs and supports Face Recognition, LPR and Advanced Video Analytics (DDA2). This easy-to-install solution is suitable for larger-sized installations (up to 32 channels). It also complies with NDAA demands. Check Point™ Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.Use with Check Point™ enabled cameras for a robust cyber-secure solution.
Features:
* Embedded Cyber Protection: Quantum Iot Nano agent by Check Point™* Compliance: NDDA compliant with GDPR features
* Video Input: 32 Channels. No embedded. PoE power is required for all cameras
* Network: 2x 1000/100/10Mbps self-adaptive Ethernet interfaces
* Max Input/ Output Bandwidth: 320Mbps / 256Mbps
* Video Compression: H.265+, H.265, H.265S/ H.264
* Recording: 32CH @ 12MP Real Time
* Max Decoding: 1CH @12MP; 4CH @ 4MP ; 9-32CH- D1
* RAID Configuration: 0, 1, 5, 6 & 10 Supported.
* Fisheye De-Warp: Local & Web (12MP)
* Storage: 8x SATA HDD. Max 10Tb each. Not included.
* Storage: 2x E-SATA (up to 10TB)
* Display Outputs: HDMI 1(4K, 1080P, 1280x1024), HDMI 2 & VGA (1080P, 1280x1024), (32CH Monitor 1 + 9CH on Monitor 2)
* PTZ Support: IP only. RS-485 port available for PTZ controller
* Analytic Support 1: Face Recognition, Smart Search, Camera Tampering
* Analytic Support 2: Line Crossing, Sterile Area, Object Monitoring
* Search Mode: DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS
* Audio Input: 1CH RCA (Linear) + IPC inputs
* Audio Output: 1CH RCA (2.0 Vp-p, 1k) + IPC outputs, IP Speaker
* Alarm Input/ Output: 16CH + IPC / 4CH + IPC
* ONVIF: Full Device Support (Profiles T/ G, ONVIF Version 20.12)
* Power Supply: AC100-240V (consumption 30W)
* Dimensions: 445mm (W) x 436mm (D) x 90mm (H)
* APP Support 1: Provision Cam2 for iOS/ Android
* APP Support 2: IE for Windows 7/8/10, Safari for Mac OS, VMS for Windows/MAC
Storage, Monitor & UPS Options:
* 4Tb 46075* 6Tb 460751
* 8Tb 460752
* 10Tb 460753
* Provision-ISR 24" Ultra-Thin Monitor: 50008
* EATON 5E UPS 700VA/360W, 2x NZ OUTLETS 13071
* EATON 5E UPS 1100VA/660W, 3x NZ OUTLETS 13076
