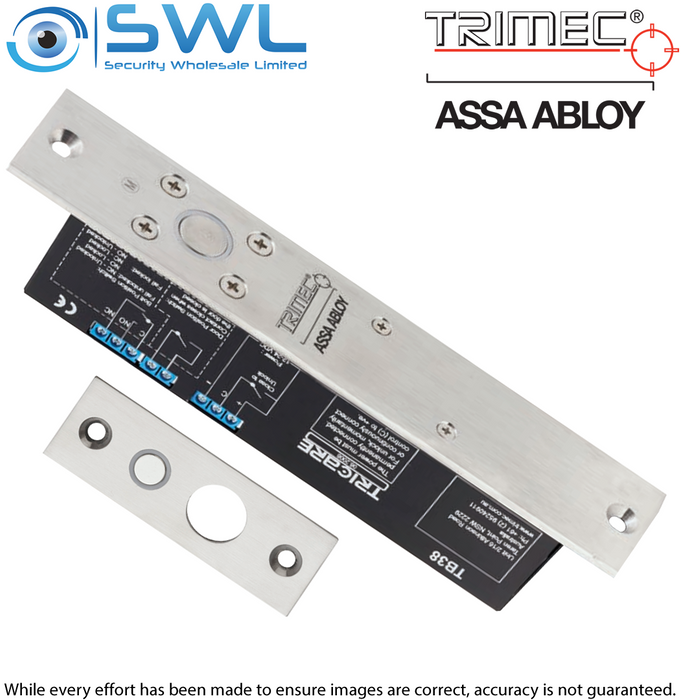

ASSA ABLOY TB38 DROPBOLT: 12-24VDC PTL, 38mm Faceplate - 2000Kg
Stock Code:
60507
POA
Description
***** Ordered at request 3-4 day lead time *****
Designed for use on swing-through, double action doors, these drop bolts are ideal for applications where an electric strike is impractical.
Features:
* High Security: Bolt is deadlocked in the extended position* Bolt Position: Monitored
* Door Position: Monitored by integrated magnet in strike plate
* Multiple Orientation: This drop bolt works horizontally or vertically
* Locking Mode: Dual PTL/ PTO. Continuously Rated Solenoid
* Tamper: Lock can't be defeated by slipping a metal object between lock & striker plate
* Intelligent Electronics. TB38 attempts to re-close the bolt 8 times, giving time for swing-through doors to settle/ close
* Thermal Protection. A thermal fuse will operate if the Solenoid overheats.
Specifications:
* Holding Force: 2000Kg* Locking Mode: Fail Safe & Fail Secure
* Voltage: 12V - 24V DC
* Current (start): 1400mA @ 12V DC, 1100mA @ 24V DC
* Current (holding): 260mA @ 12V DC, 105mA @ 24V DC
* Dimensions (Mortice): 164 x 33mm
* Bolt Length 14.3 x 14mm
* Faceplate Size: 202 x 38mm
* Monitoring Contacts: Bolt & Door
* Standards: British Safety, CE approved & C-tick certified
* Compliance: BSEN 50081-1 & BSEN 50082-1
* ASSA Abloy part #: 118381-000
