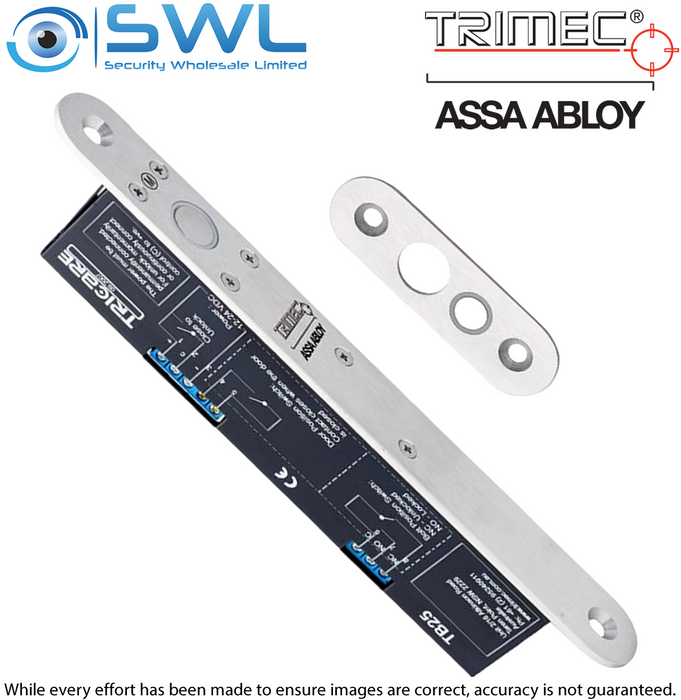

ASSA ABLOY TB25 DROPBOLT: 12-24VDC PTL, 25mm Faceplate - 1000Kg
Stock Code:
60505
POA
Description
***** Ordered at request 3-4 day lead time *****
The TB25 drop bolt represents true engineering innovation, design excellence and the superior quality customers have come to expect and demand from Trimec. Designed for use on swing-through, double action doors, these drop bolts are ideal for applications where an electric strike is impractical. TB25 offers a unique mechanical override when combined with an integrated euro profile cylinder.
Features:
* High Security. Bolt is deadlocked in the extended position* Mechanical key override in the event of power failure. (Euro Profile Cylinder not inc.)
* Bolt: Position monitored
* Door position: monitored with integrated magnet in strike plate
* Multiple Orientation: drop bolts will work horizontally or vertically
* Power to Lock
* Continuously rated Solenoid
* Tamper: Lock can't be defeated by slipping a metal object between lock & striker plate
* Intelligent Electronics. TB38 attempts to re-close the bolt 8 times, giving time for swing-through doors to settle/ close
* Thermal Protection. A thermal fuse will operate if the Solenoid overheats.
Specifications:
* Holding Force 1000Kg* Locking Mode: PTL and PTO
* Monitoring Contacts: Bolt and Door
* Voltage: 12 to 24V DC
* Current (Start): 1100mA @ 12V DC, 1000mA @ 24V DC
* Current (Holding): 210mA @ 12V DC, 90mA @ 24V DC
* ASSA Abloy part #: 118251-000
