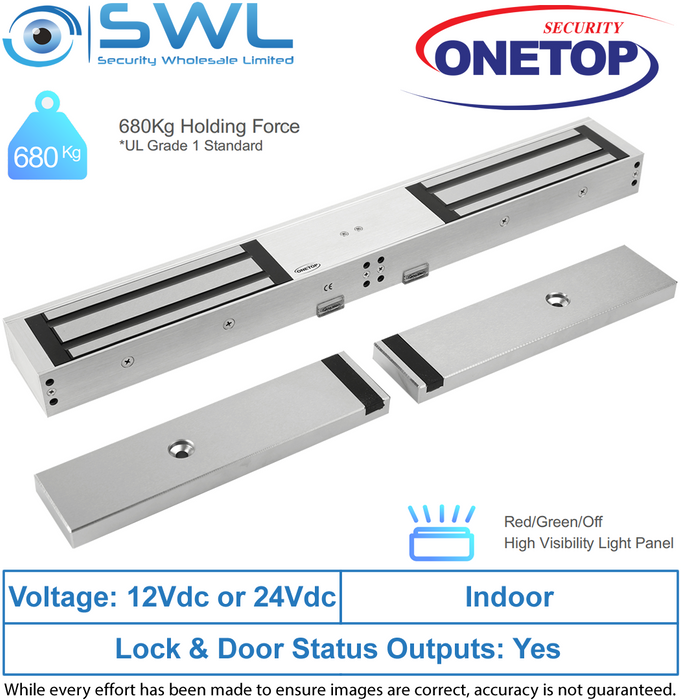

ONETOP HH5800D DSS: Double High Holding Force Magnectic Lock 12/24VDC 680Kg
Stock Code:
580081
POA
Description
HH5800 series locks are high holding force, quality electromagnetic locks, with a true holding force of 680Kg. HH5800 locks have tested corrosion resistant up to 96 hours - Salt spray and to over 1 million usage operations. HH5800 locks are fire rated and certified to the maximum highest life security requirement with UL10C at 3 hours and 4 hours for EN1634-1-2014/ BSEN1634-1-2014 and BS476-22.
Features:
* Holding Force: 680Kg each lock* Surface Finishes: Anodized Aluminum Housing
- Zinc plating for anti-corrosion (96 Hrs Salt Spray Tested).
* Fail Safe: Power-to-lock
* Lock Body Dimension: L 536 x W 73 x H 41mm
* Armature Plates Dimension: L 252 x W 61 x 16mm (2pcs)
* Built-in Light Panel: Unique to ONETOP design
* LSS Monitoring
* DSS Monitoring
* Operating Voltage: 12-24VDC ±10%
* Operating Current: 12VDC 700mA 24VDC 420mA
* Impact Energy: 200J (AS4145.2 Standard)
* Delay Timer: Built-in 0-110 seconds (for delay re-lock)
* Exit Release: Exit Through Lock Release Button
* Cover Tamper Switch: Monitoring Paba Closure Tampering
* Weight: 10.0Kg
* Compliance: UL10C, CE, RoHS, EN1634-1-2014/ BSEN1634-1-2014 and BS476-22
A 6mm 'spacer' plate is available for this lock: 58029
HH5800 Series use the same L & Z, Glass Door L Bracket, Armature Plate Holder as EM5700.
